Brief Introduction

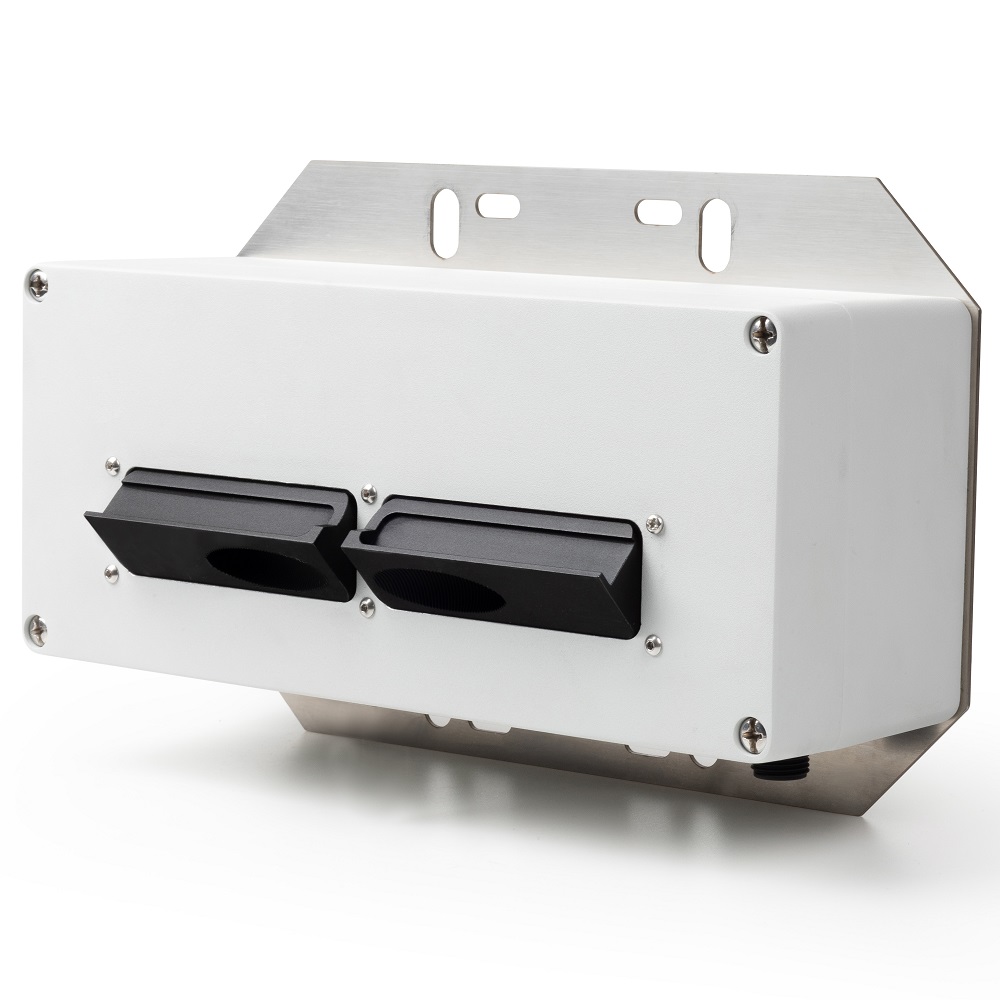

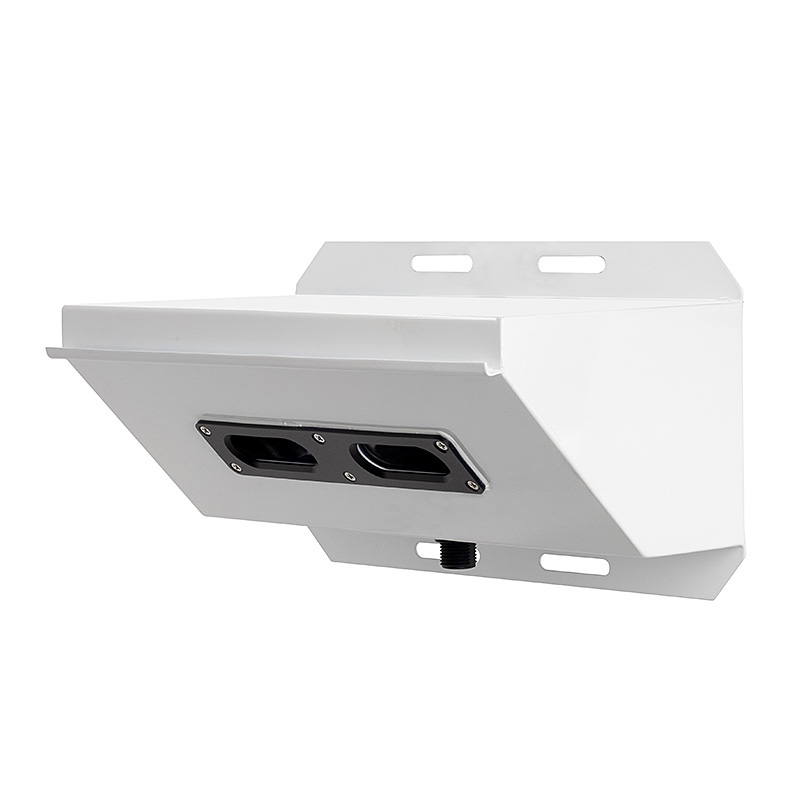

HY-SLV2E is a low cost visibility sensor working based on forward scattering principle developed by Hongyuv. Main application is for traffic purposes. Aluminum alloy shell with spray-powder make it will never rust, applicable to drilling platforms, ships, highways and other transport sector.
Using forward-scattering technique it measures the amount of particles in the air that limit the visibility. It emits pulses of infrared light and measures the intensity of the forward-scattered light of the suspended particles in the atmosphere, using suitable algorithms to convert the measurements to meteorological visibility values.
Advantages
- Flexible output options
- High-performance sensor at a competitive price
- Compact, lightweight package
- Simple installation & maintenance
- Integrated heater for all-weather operation
Technical Parameters
| Range | 10-3000m |
| Accuracy | ±20% |
| Communication | RS232,RS485 |
| Dimension | 300*115*140mm |
| Weight | about 1.8kg |
| MTBF | 15000hours |
| Power supply | 12---24VDC |
| Power consumption | 6W |
| Operating temperature | -50℃ to +50℃ |
| Operating humidity | 0---100% |
| Protection Class | IP65 |
