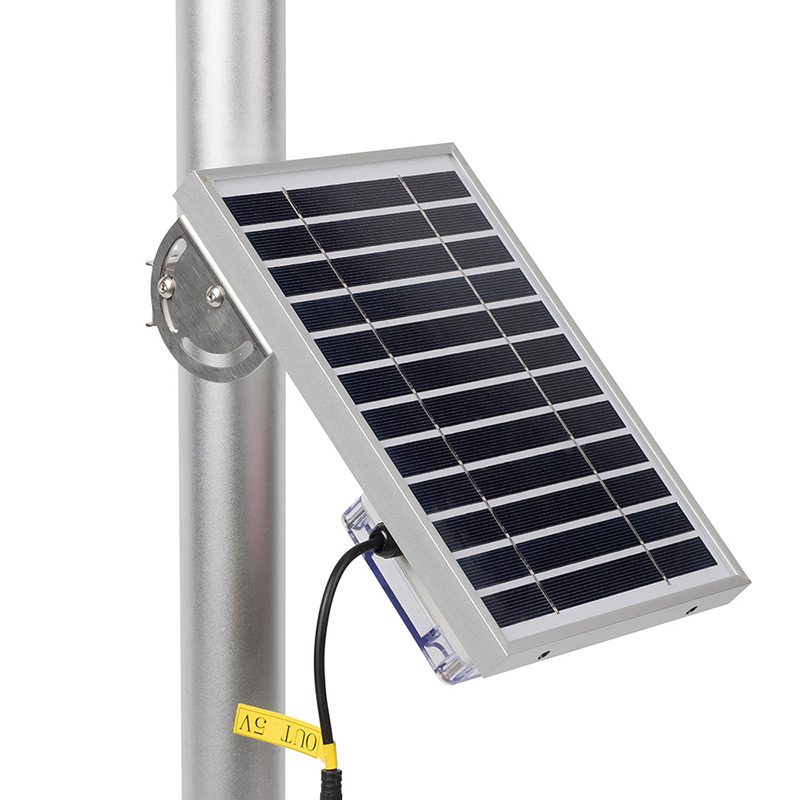

HY-SCB2E series solar panel power supply is specially designed for our weather station, it allows our weather station work continuously under circumstances where power supply is not available, composed of solar panel, charger, and standard 18650 lithium rechargeable battery.
Brief Introduction:

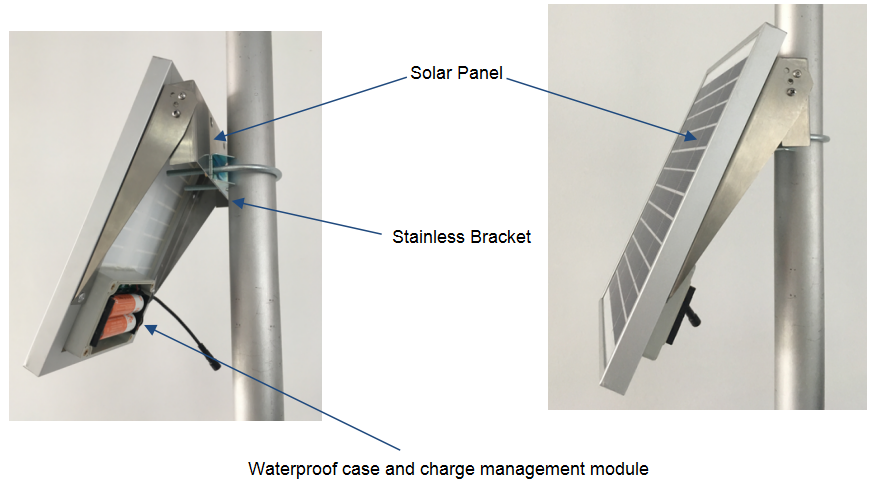

HY-SCB2E series solar panel power supply is specially designed for our weather station , it allows our weather station work continuously under circumstances where power supply is not available, composed of solar panel, charger, and standard 18650 lithium rechargeable battery. As we know the lead-acid cell in traditional solar power supply makes it large in dimension and very heavy, on contrary, the HY-SCB2E solar panel power supply designed by HongYuv Technologies adopts advanced charge-discharge control module, allows it to simultaneously and safely charge-discharge for several sets of 18650 lithium rechargeable battery. The whole power source has lightweight and small dimension.The three components can be integrated by a specially designed aluminum alloy bracket, which makes the installation very easy and the whole system very compact with good looking.
Technical Parameters
| Model | HY-SCB2E |
| Output Voltage | DC 3.7~4.2V |
| Output Current | 0.1A (0.2A Max） |
| Battery Qty(18650 lithium) | 2 pcs;Typical capacity 3000mAh*2 |
| Dimension | 260*175*50mm |
| Power of Solar Panel | 5 Watt Max. charging current about 500mA |
Duration time without sunshine charging:
For WDC2E anemometer: 6000mAh/20mA=300 hours= 12.5 days
For WDC6E weather station without rain sensor: 6000mAh/20mA=300 hours=12.5 days
For WDS2E anemometer: 6000mAh/12mA=300 hours= 12.5 days
For WDS6E weather station without rain sensor: 6000mAh/20mA=300 hours=12.5 days
For Weather station with rain sensor, the rain sensor itself require at least 7VDC, therefore HY-SCB2E is not suitable for it.
