Brief Introduction

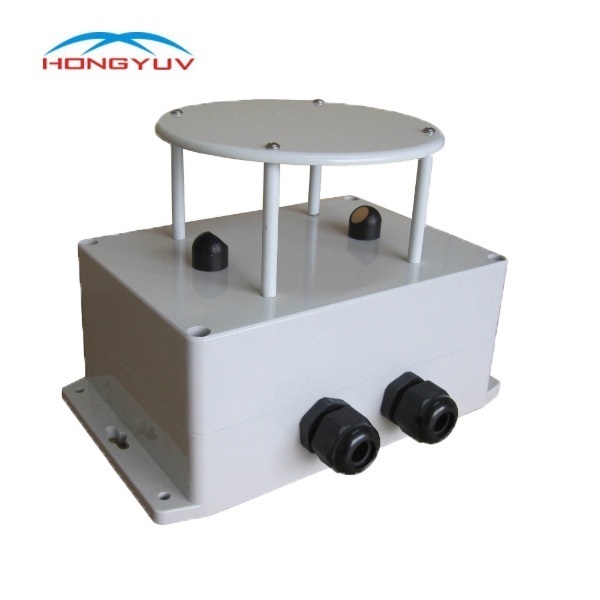

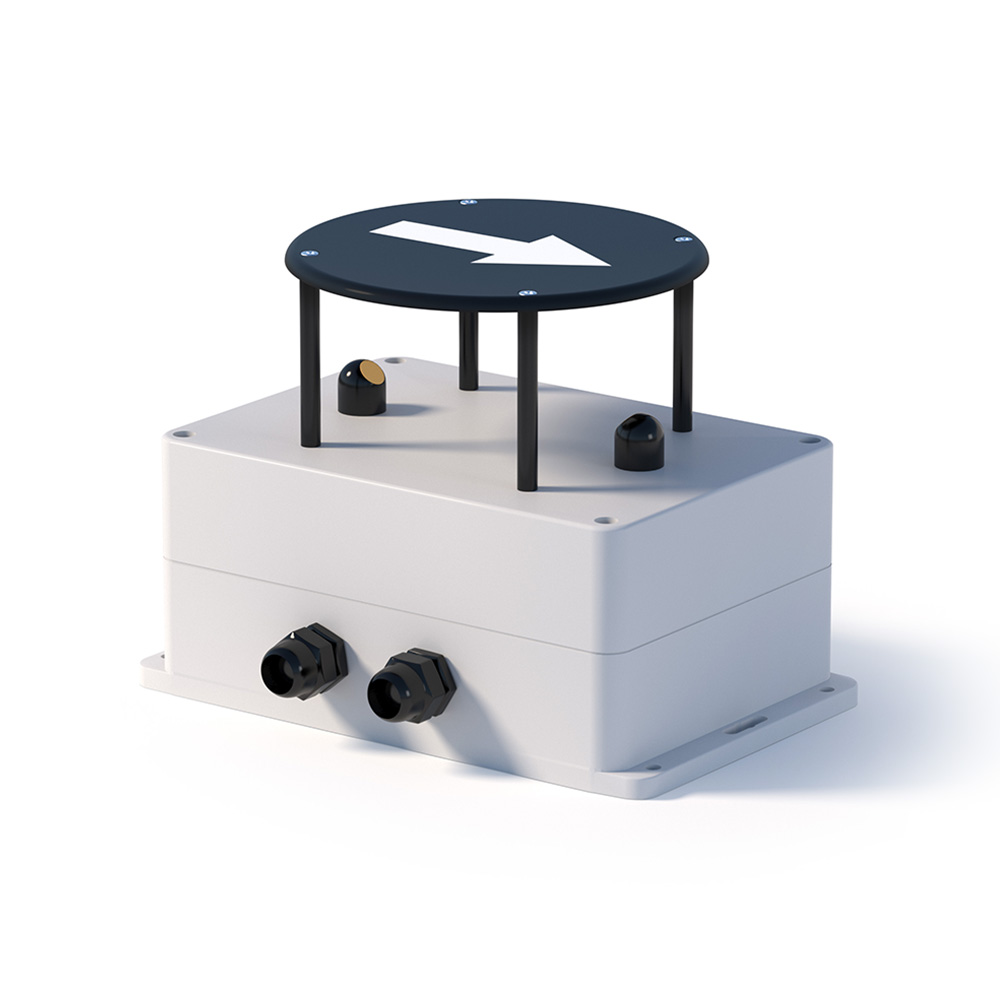

HY-WDS21E ultrasonic wind speed and direction sensor is specially designed for the tunnel application, it’s installed on the tunnel wall and providing real-time tunnel wind data to total control room, as a basic basis for ventilation and operation. At the same time, the analog and digital signals output from sensor can be connected to the PLC in the nearby sub-control room and then to the general control room through optical fiber.
HY-WDS21E ultrasonic wind speed and direction sensor is specially designed for the tunnel application, it’s installed on the tunnel wall and providing real-time tunnel wind data to total control room, as a basic basis for ventilation and operation. At the same time, the analog and digital signals output from sensor can be connected to the PLC in the nearby sub-control room and then to the general control room through optical fiber.
Main Features
Cast aluminum body, anodized surface for harsh environments in the tunnel
Ultrasonic measurement free from influence of ambient temperature
Non-contact detection, no moving parts, reduce the failure rate
Technical Specification
| Principle | Ultrasonic time-difference technology |
| Installation | Wall of tunnel |
| Range | Wind speed -30m/s~30m/s(other range can be customized) |
| Resolution | 0.1m/s |
| Accuracy | ±2% |
| Digital interface | RS232，RS485 |
| Signaloutput | Wind Speed:4-20 mA output(load < 500Ω) |
| Wind Direction: Relay output(three terminals NO or NC) | |
| Protocol | ModBus |
| Power supply | 100~220VAC±10%，50Hz/60Hz |
| Protection Grade | IP66 |
| Operating temperature | -45℃ to +75℃ |
| Operating humidity | 0---100% |
| Power consumption | 1W |
