Brief Introduction

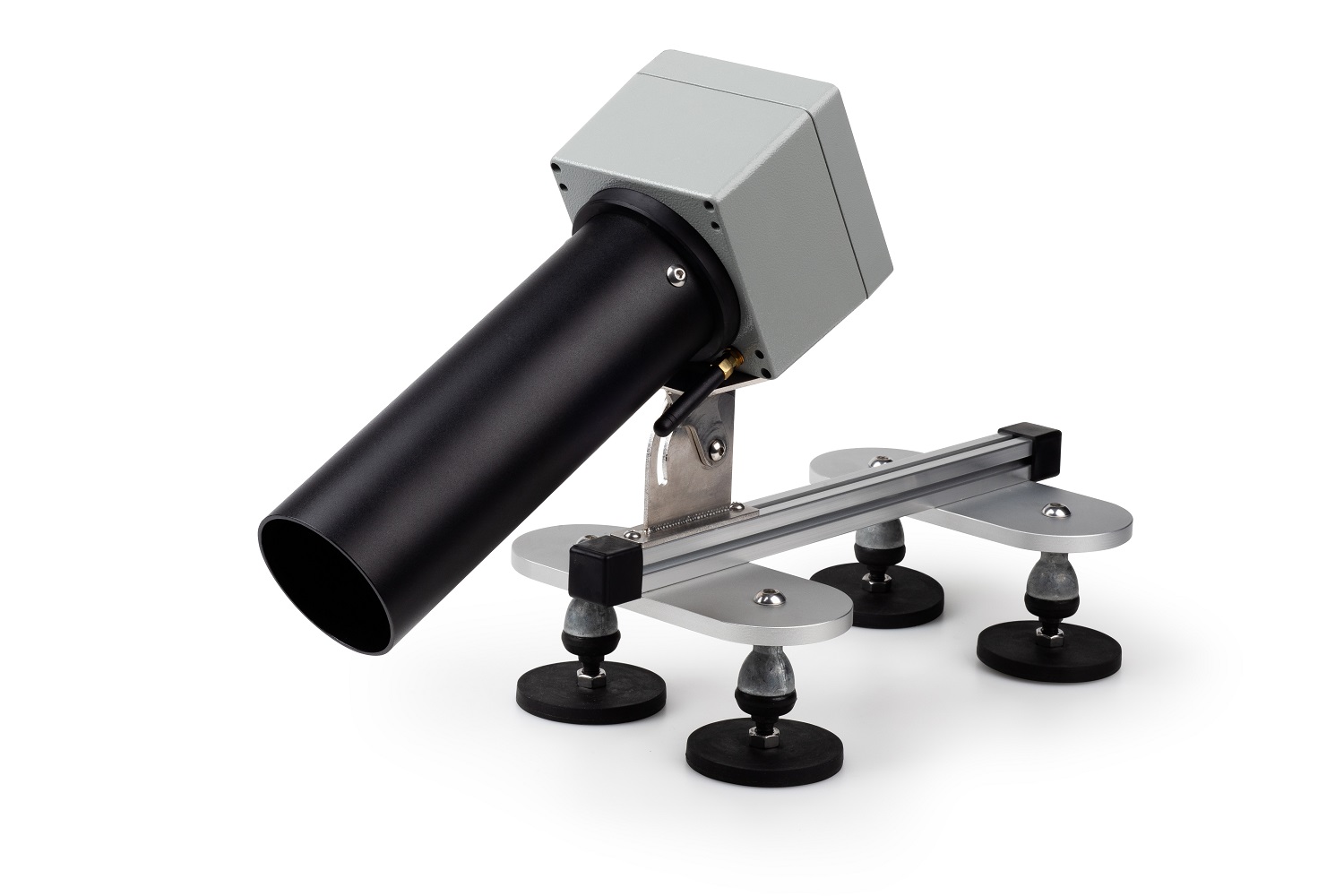

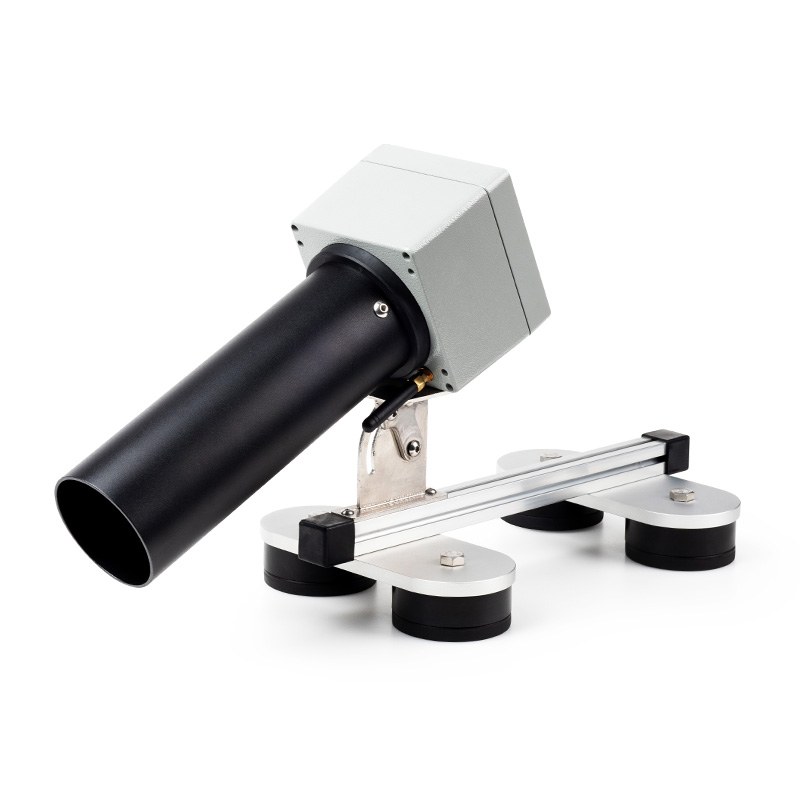

HY-MRSS2E uses remote sensing technology to quickly and real-time detect the state types and accumulated thickness of ice, snow and water on the road surface. It is mainly used to provide decision-making basis for road maintenance and safety control in winter. HY-MRSS2E has a solid structure, with rechargeable lithium battery inside, and can also be connected with external power supply. Data can be transmitted to the app of the mobile phone through Bluetooth, and can also be connected to the computer through RS485 interface to display and save the data.
Advantage
- Identify accumulated water, snow, ice and measure their thickness
- Measure grip level, road surface temperature, ambient temperature
- Mounted on vehicle or fixed installation
- Low cost for maintenance
Technical Parameters
| Model | HY-MRSS2E |
| Installation height | 1---1.9 Meters |
| Measure period | 10 time / second |
| Power | 2 pcs 18650 lithium batteries inside DC5V adapter |
| Operating environment | -40℃ to +60℃ ; relative humidity：0 to 95% |
| Water film thickness | 0---2mm |
| Ice film thickness | 0---2mm |
| Snow thickness | 0---2mm |
| Grip level | 0.01(most slippery)-0.82(less slippery) |
| Road surface state | Dry,moist,wet,snow,ice,mixture of ice and water(frost) |
| Optional parameters with surcharge | Road surface temperature： -40ºC to +60ºC |
| Ambient temperature： -40ºC to +60ºC | |
| Applicable road material | Concrete, asphalt |
| Communication interface | Bluetooth and RS485 |
