Introduction

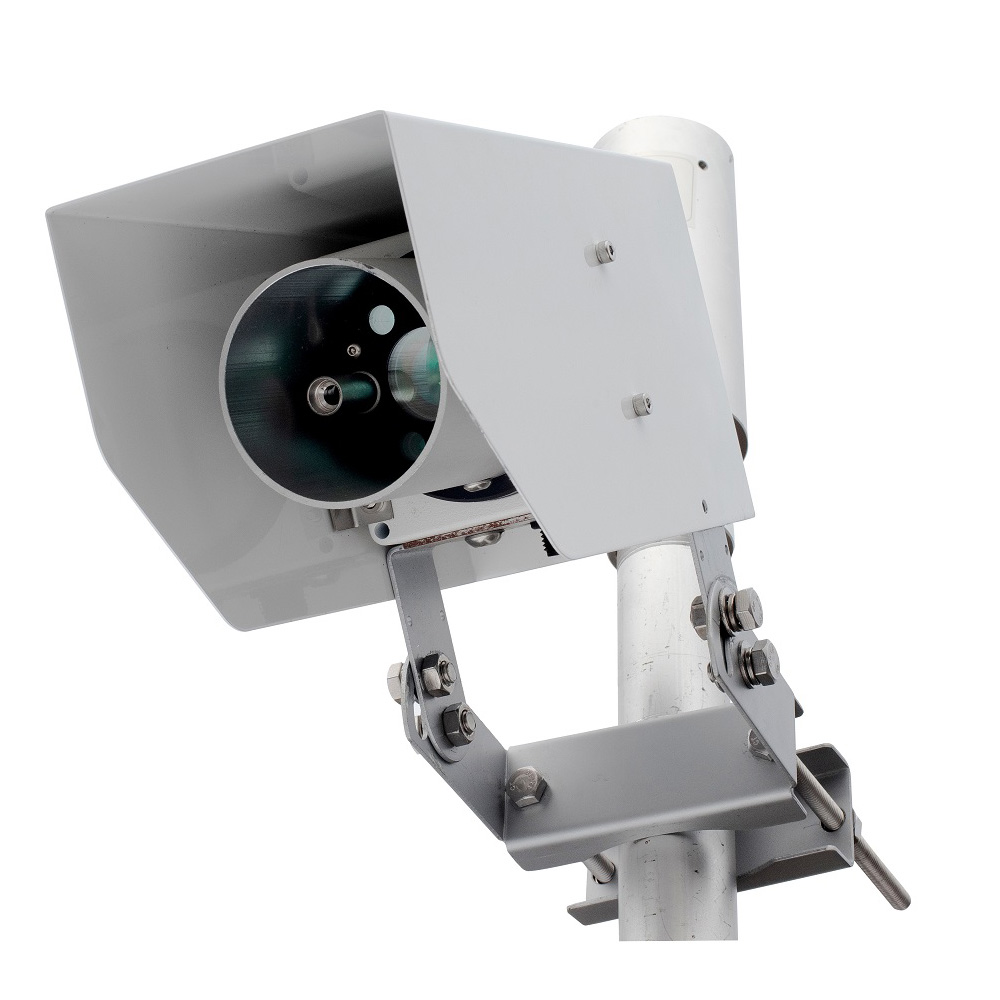

HY-RSS12E/13E series non-contact road state detector adopts remote sensing technology to avoid road damage and traffic interference caused by the installation of road meteorological station. Multispectral measurement technology can accurately detect the presence and thickness of ice, snow and water on the road surface, as well as real-time monitoring of heavy fog, rain, snow and other weather phenomena that affect traffic safety.
Function
Remotely detect water,snow, ice on road
Road and bridge surface state remote sensing
Non-imbed installation Ideal for traffic and accident prone areas
Ideal for frequently rainy and snowy areas
Almost maintenance-free
Technical Parameters
| Model | HY-RSS12E | HY-RSS13E |
| Detect distance: Diameter of detection area | 2---8meters；23cm | |
| Installation angle to horitonal direction | 30---80° | |
| Power supply | DC12-24V:1W | |
| Working Environment | Temperature：-40 ºC to +60 ºC; Humidity:0 to 95% | |
| Thickness of water film | - | 0---2mm |
| Thickness of ice layer | - | 0---2mm |
| Thickness of snow | - | 0---2mm |
| Level of grip | - | 0.01-0.82 |
| Identificable Road State | Dry,moist,wet,snow,ice,mixture of ice and water | |
| Applicable Road | Concrete, Asphalt | |
| Communication Interface | RS485,RS232 | |
