HY-DISPLAY is a powerful console with Embedded real-time operating system is embedded, which can work reliably continuously, without garbage and redundant, no worries to system crash.
This console is mainly for HongYuv sensor (for free), we can also customize it to fit your own sensor.(Extra cost)
Brief Introduction:
HY-DISPLAY is a versatile console comes with multiple function developped by Hongyuv Technology. Not only can it display real-time data, history graph, do data logging, but also conduct TCP connection as client to your server, upload data to Weather Underground, HongYuv IoT platform.
All data received by serial port(UART, RS485, RS232, TTL) will be automatically uploaded to your server.
It’s working based on embedded real-time operating system, which is stable, free of system crash.
It can support HongYuv unsolicited(active) output in ASCII stream format, NMEA0183, MODBUS-RTU protocol.
We can also make it suit to your own protocol based on your requirement customization.
Multiple language can be customized.
Features:
Min and Max wind indication
Support Weather Underground WUnderground
Wind Sector indication
Wind and Temperature Alarm
Historical Graph & Changable wind & temp unit
TCP connection
WIFI & SD card supported
Support HongYuv IoT platform

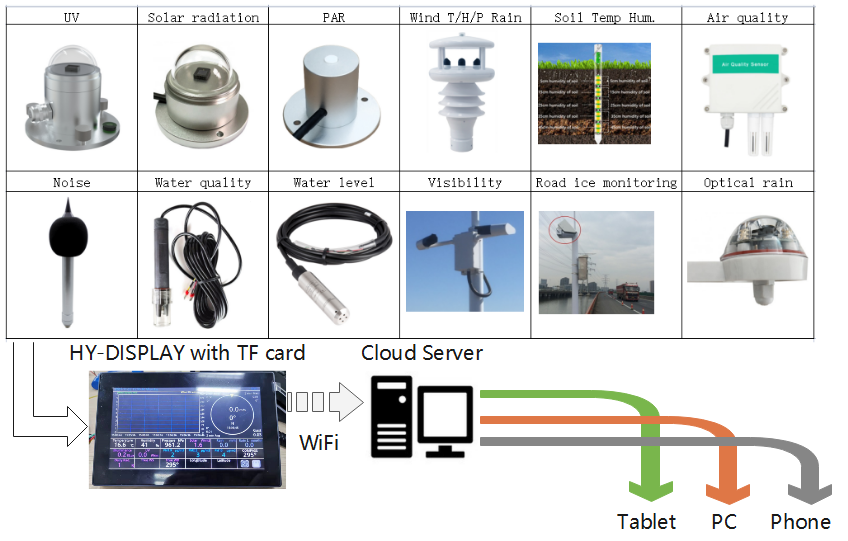

HY-DISPLAY is capable of integrating various sensor over RS485 MODBUS-RTU.
Under help of HY-DISPLAY, you don't need to handle harware interface processing and just need to focus on development of cloud server.
Specification
| Screen | 7 inch TFT Capacitive touch screen |
| CPU | 800Mhz |
| RTC function | Yes |
| Dimension | 189.0mm×105.3mm×17.5mm |
| Display Zone | 155.5mm×87.2mm |
| Interface | TTL or RS485 or RS232 |
| WIFI | Optional:2.4GHz-2.48GHz supported |
| TF card | Supported, 32GB TF card can store 3000 days' data |
| Operational Temp | -20℃---+70℃ |
| Storage Temp | -30℃---+80℃ |
| Optional protocol | One of MODBUS-RTU,NEMA0183,Active output.Other protocol can be customized |
| Reliability | It has passed industrial standard high and low temperature, ESD, group pulse and radiation tests |
| Power consumption | Backlight off:120mA 20%;150mA 100%; 240mA @12VDC |
It can upload data to WUnderground and HongYuv IoT platform at the same time!

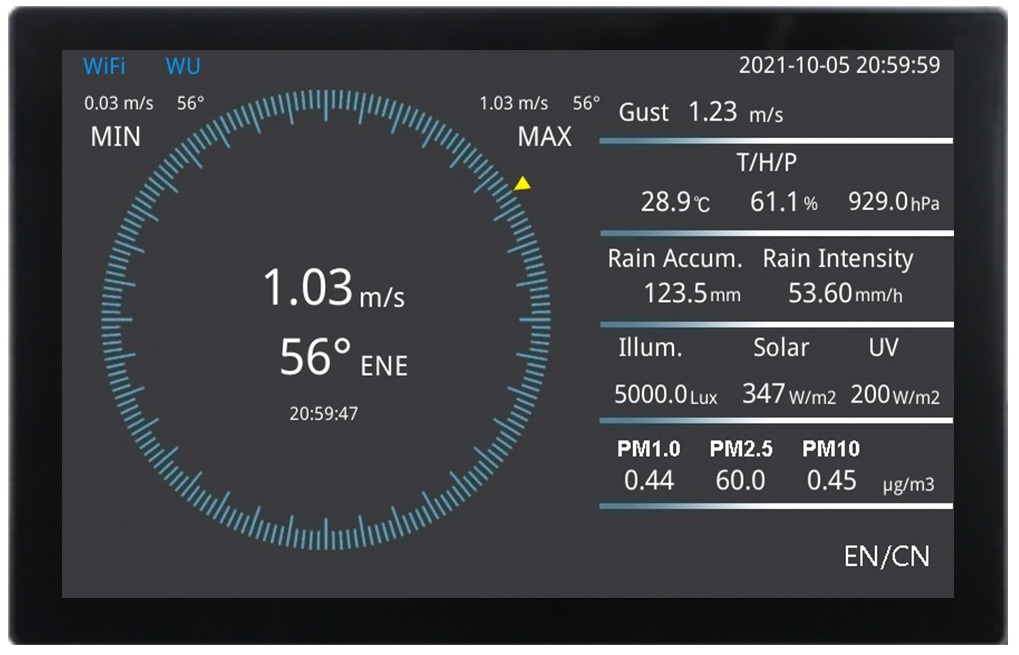

Below are screenshots for your info.
