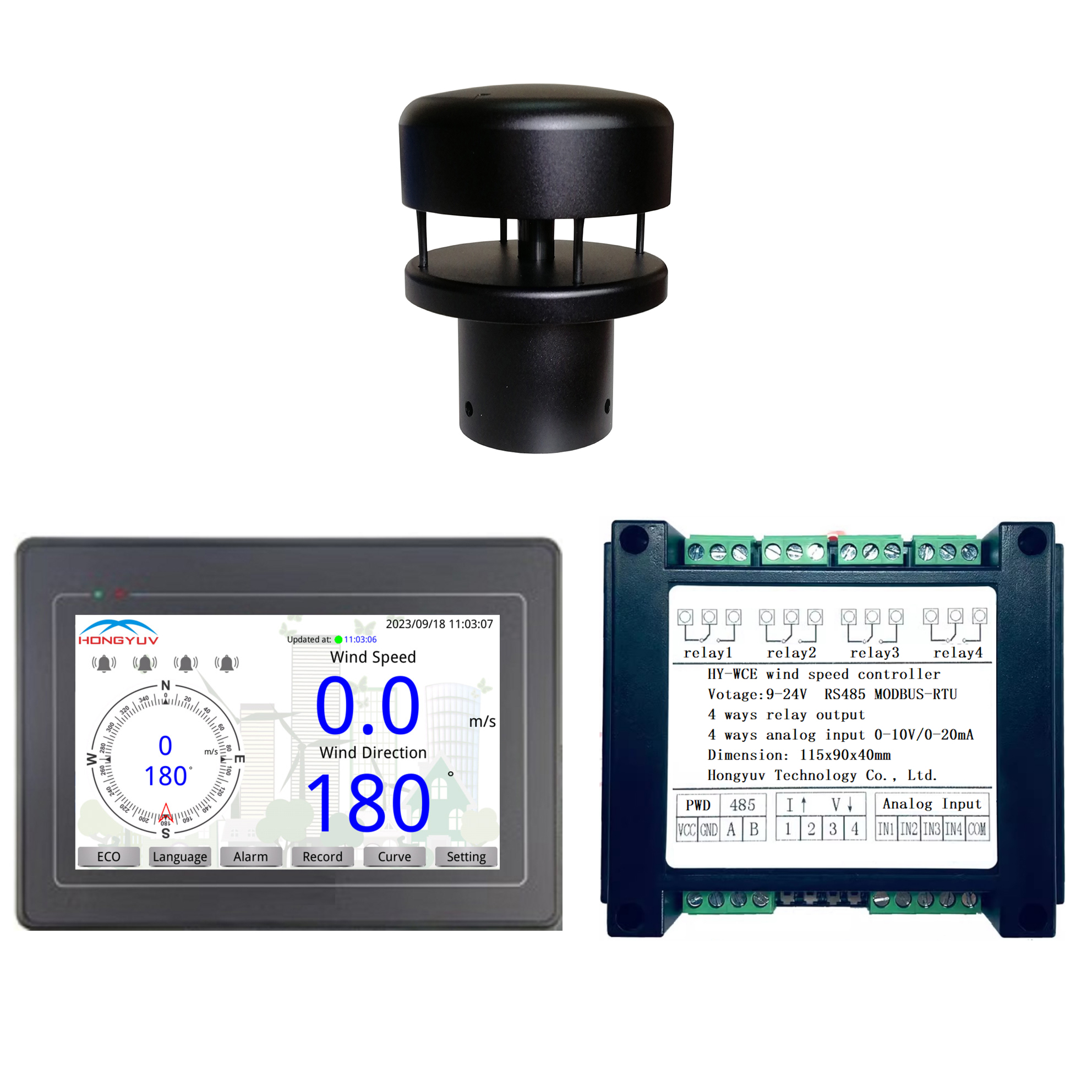

HY-WCE is a plug and play wind speed alarm controller, it's using combination of touchable data logger and four ways serial port relay controller.
It can display real-time wind speed, direction and state of relay and support multiple languages, such as Chinese, English, Russia, Japanese, Korean, Polish.
Four relays can automatically close or open based on setting of alarm values.
Wind data and relay state are stored in TF card for further analysis.
Details:
Contact us at info@hongyuv.com
Introduction
HY-WCE is a plug and play wind speed alarm controller, it’s using combination of touchable data logger and four ways serial port relay controller.
It can display real-time wind speed, direction and state of relay and support multiple languages, such as
Chinese, English, Russia, Japanese, Korean, Polish.
Four relays can automatically close or open based on setting of alarm values.
Wind data and relay state are stored in TF card for further analysis.
Application
Crane safety early alarm
Hazardous weather warning
Automatically industrial control
Specification
------------------------------------------------------
Wind Speed: 0-40 m/s
Resolution: 0.1 m/s
Accuracy: ± 5%
------------------------------------------------------
Wind Direction: 0 to 360 degrees
Resolution: 1°
Accuracy: ± 3°
------------------------------------------------------
Operation voltage: 9-24 VDC
Operating Temperature: -40 to +60°C
Maximum load of relays:10A 220VAC/DC
------------------------------------------------------
