Introduction

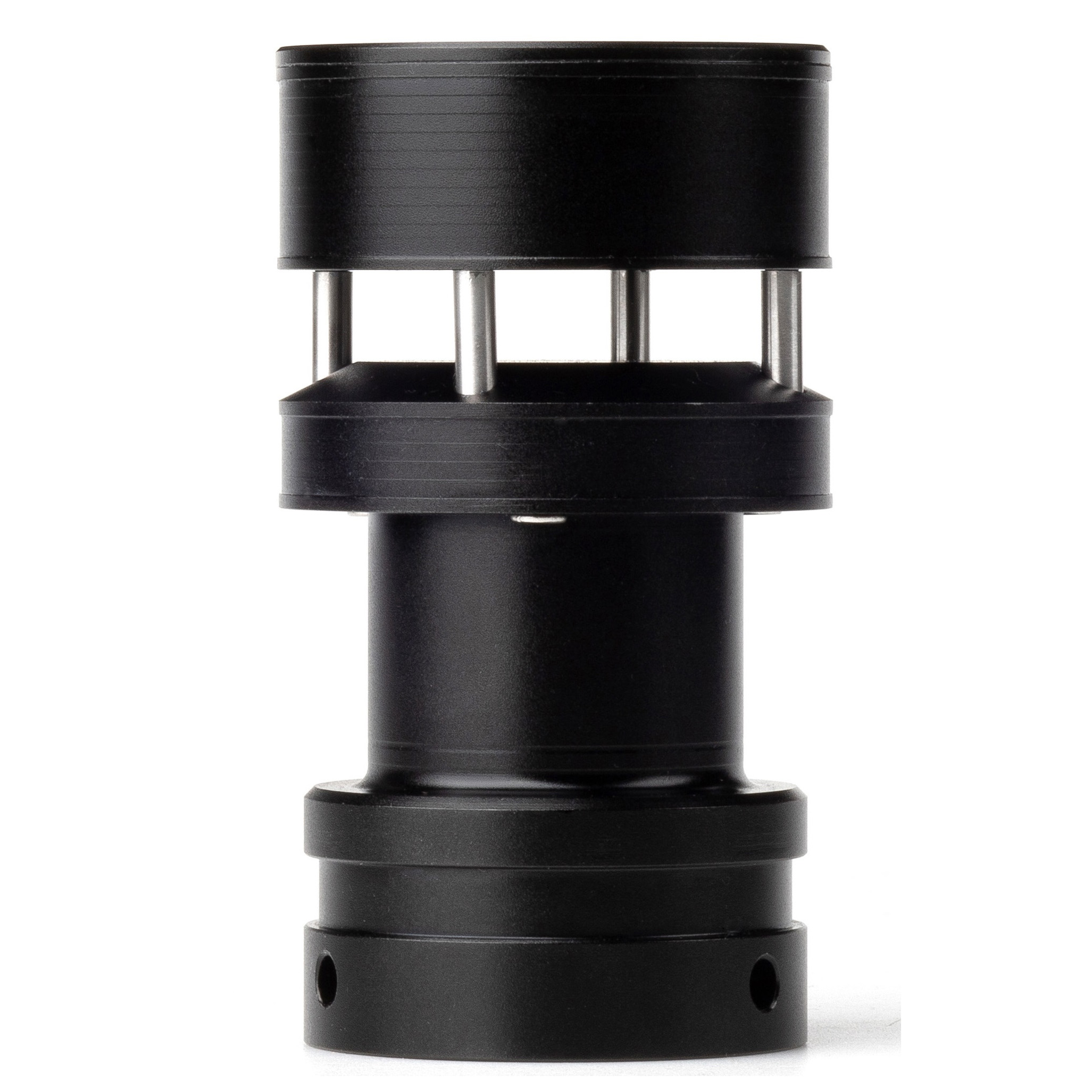

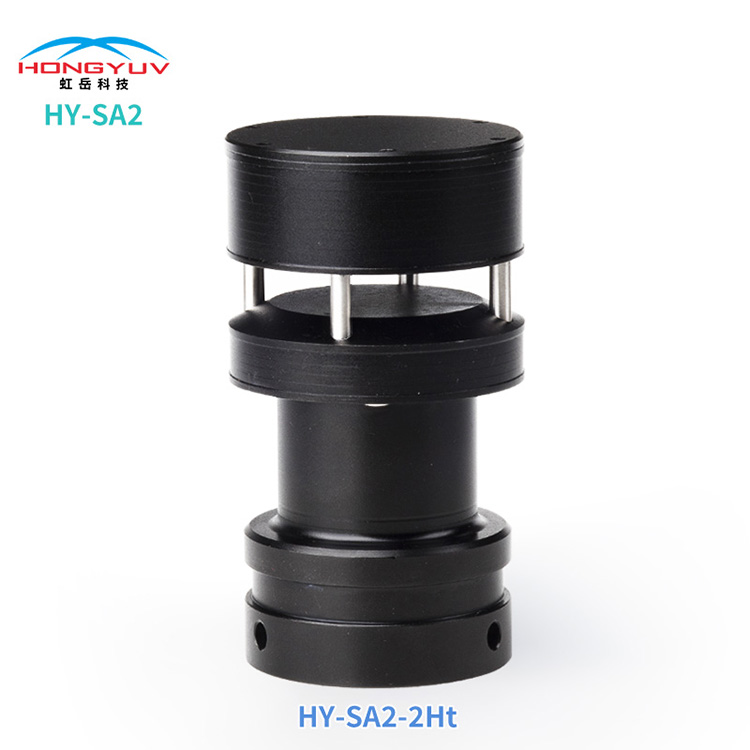

HY-SA2-2HT wind speed and direction meter is an instrument which uses flight time difference of ultrasonic wave in the air to measure wind speed and direction simultaneously. Shell of it is made of aluminum alloy with anodized and corrosion-resistant surface that makes it compact, robust and delicate.
Application:
Weather observation
Ports and harbours
Emergency services
Coastal and ocean buoys
Agriculture and horticulture
Environmental monitoring
Crane safety alarm
Wind plant monitoring
Specification
------------------------------------------------------
Wind Speed: 0-60 m/s
Resolution: 0.1 m/s
Accuracy: ± 3%
------------------------------------------------------
Wind Direction: 0 to 360 degrees
Resolution: 1°
Accuracy: ± 3°s
------------------------------------------------------
Serial Output: RS232 or RS485
Analog output:4-20mA or 0-5V(with extra cost)
Formats: ASCII, ASCII polled, NMEA0183, MODBUS-RTU, SDI-12
Baud: 1200, 4800, 9600, 19200, 38400
Wind Units: m/s
------------------------------------------------------
Power Requirement:
Sensor: 5-30 VDC < 15 mA typical
Heating: 900mA@24VDC
------------------------------------------------------
Environmental:
Operating Temperature: -50 to +70°C
Protection Class: IP65

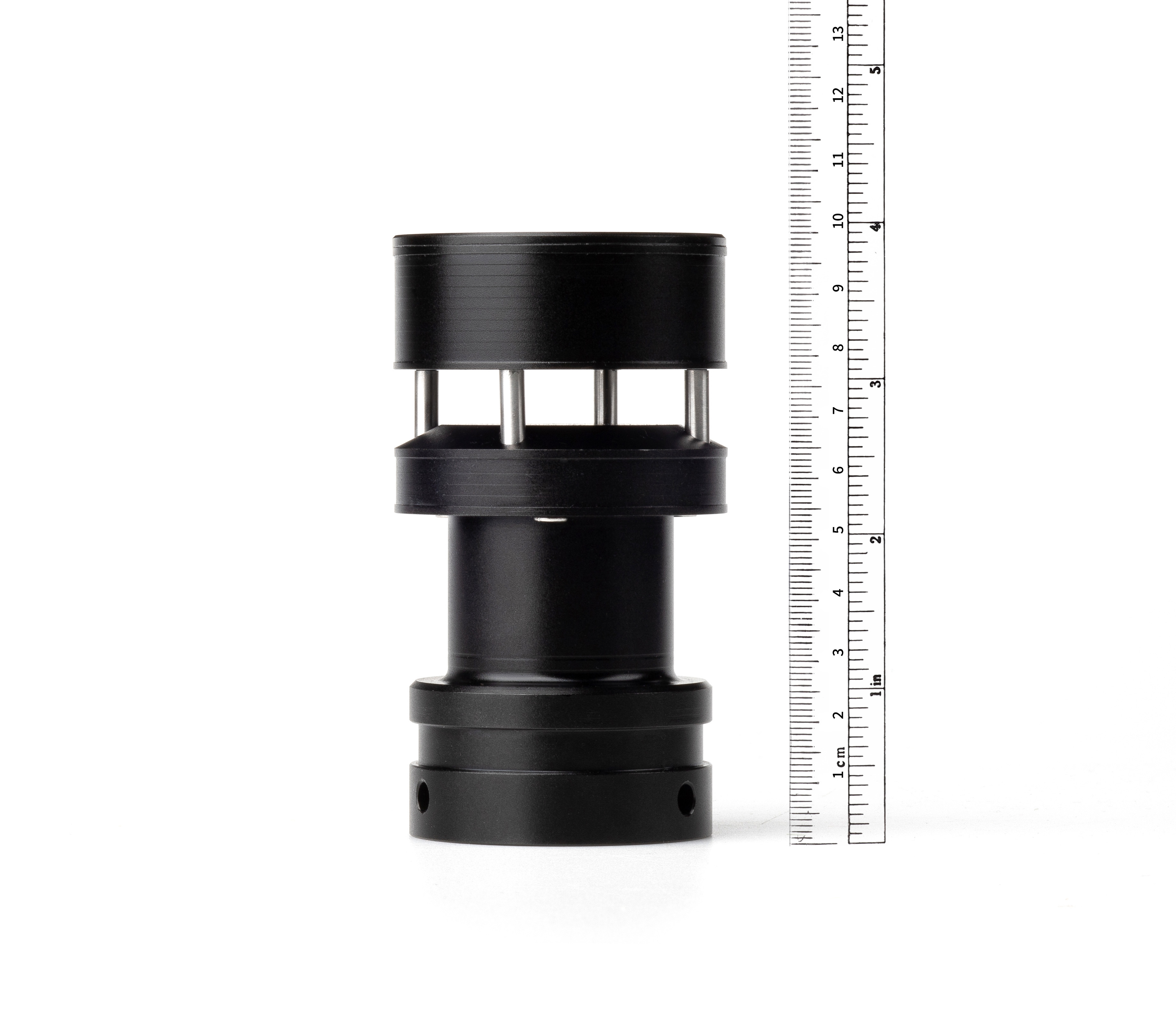

Dimensions: Φ57×100 mm
Weight: 0.2 kg
Shipping Weight: 2 kg
------------------------------------------------------
