Brief Introduction

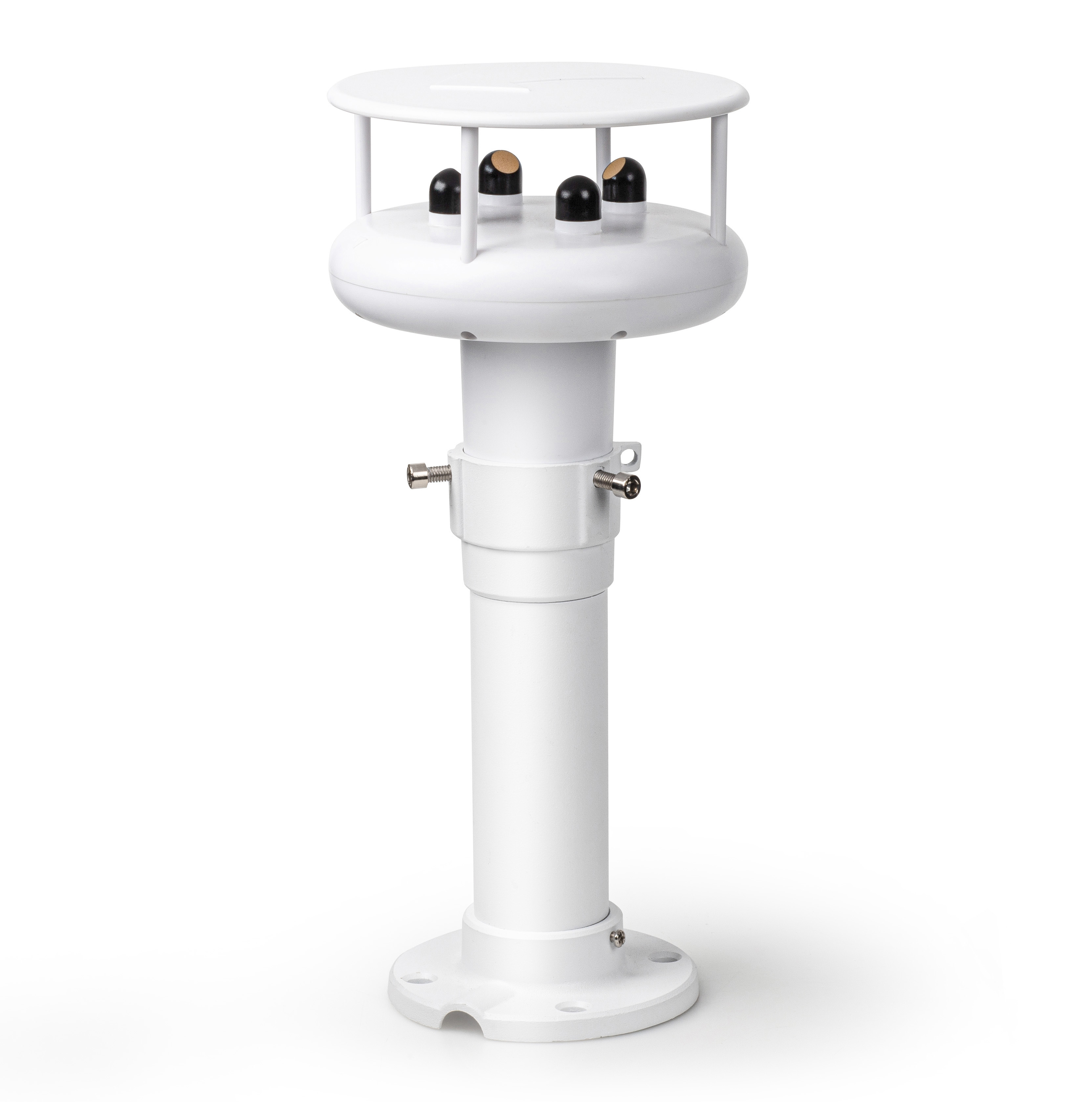

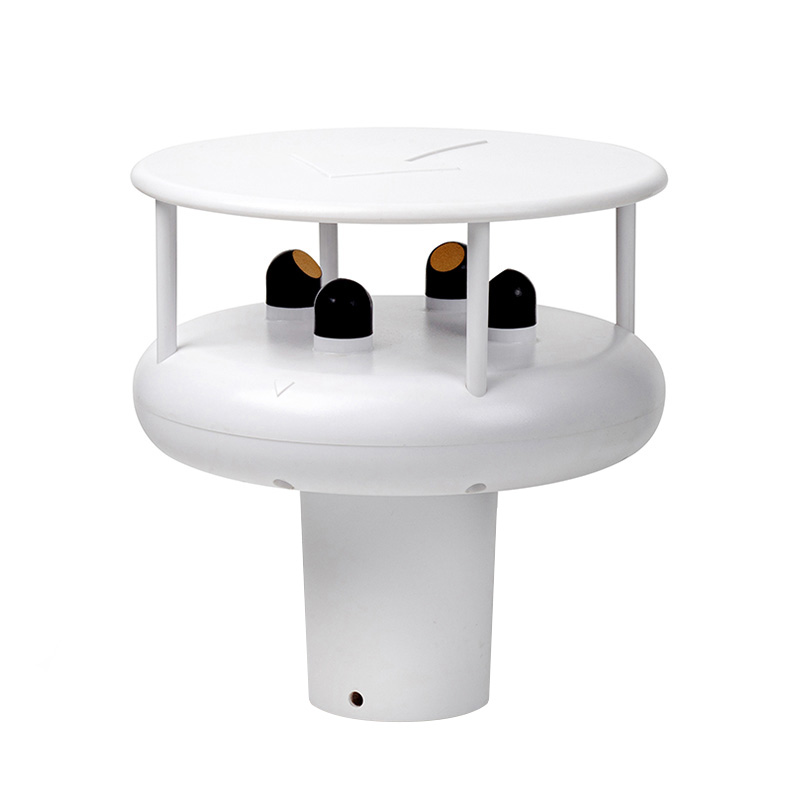

HY-WDS2E Ultrasonic 2D Anemometer is a compact ultrasonic wind speed and wind direction sensor. It is designed to simultaneously measure the 2-dimensional horizontal components of the wind speed and direction. Using ASA shell, Weight is lighter and Structure is robust. Build-in own intelligent heating module, It can normally work under the cold and freezing weather.
Our anemometer was made in molded thermoplastic, also known as ASA, which has high outdoor weather ability. ASA is extremely resistant against UV radiation of sun, it is frost and heat resistant, standing all climatically conditions.The product is widely used in the automotive industry as well as several other outdoor applications.
Key Features
- No moving or wearing parts
- Maintenance free
- Rugged and reliable
- High precision and accuracy
- Optional compass module
- Optional GPS module
Typical Applications
- Traffic control
- Meteorology
- Oil drilling platform
- Marine application
- Industrial automation
- Wind power plant
- Weather station
Technical Specification
| Parameters | Measure Range | Accuracy | Accuracy |
| Wind Speed | 0-60m/s | ±2% | 0.1m/s(0.2 knots) |
| Wind Direction | 0-359° | ±3° | 1° |
| Threshold of wind speed | 0.1m/s | ||
| Output rate | 1 data per second | ||
| Power supply | 7-30VDC 10mA@12VDC | ||
| Start up time | <2 seconds | ||
| Protection Class | IP65 | ||
| Operating Temp | -40℃ to +70℃ | ||
| Storage Temp | -50℃ to +80℃ | ||
| Output options | RS232,RS485,SDI-12,4-20mA | ||

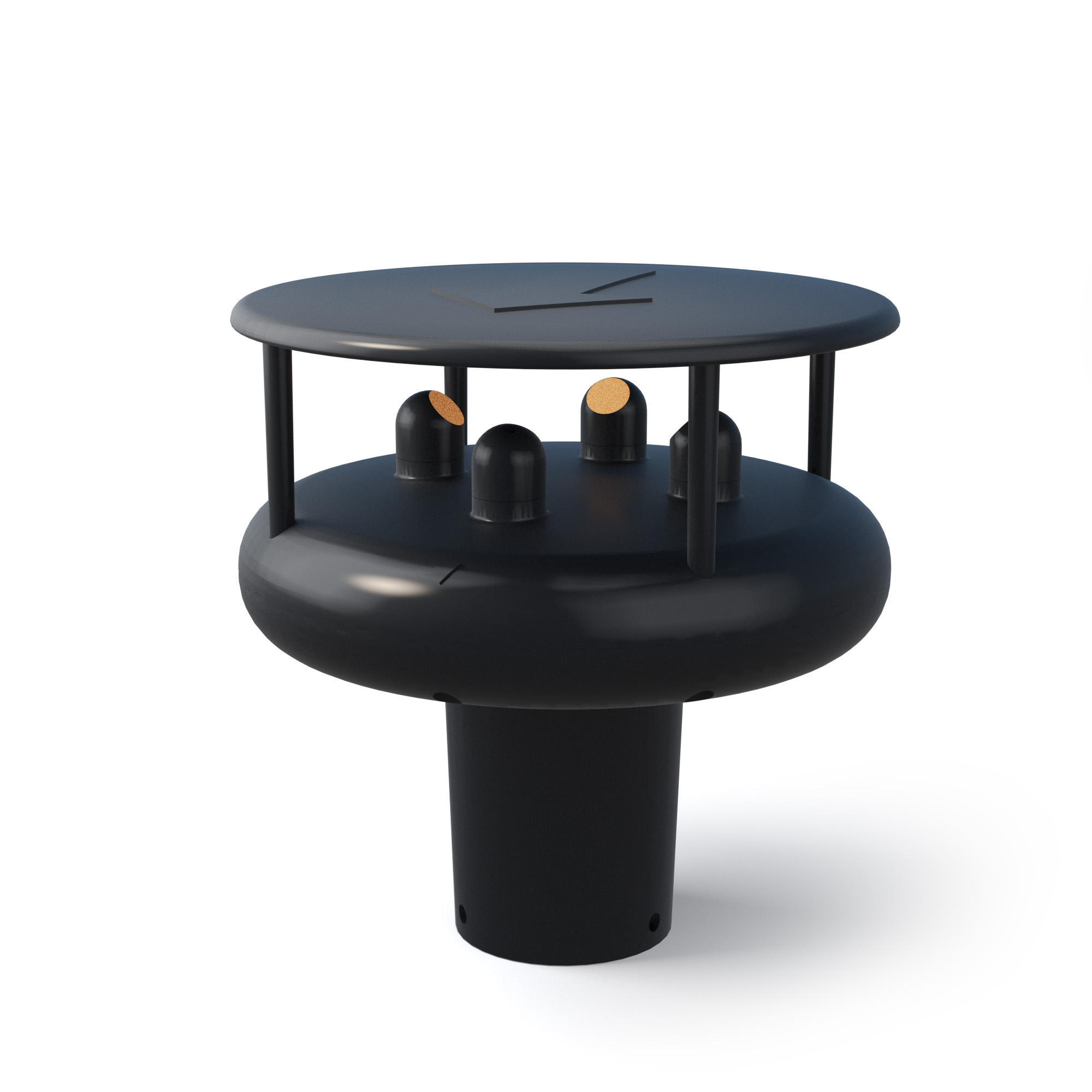

| Color options | White-default or Black | ||
| Optional protocol | MODBUS-RTU,NEMA0183,Active output,SDI-12 | ||
| Dimension | Φ144×165mm | ||
| Material of body | ASA 0.36 kg | ||
| Warranty | 24 months; Mean Time Before Failure: 10 years | ||
| Certification | CE | ||
