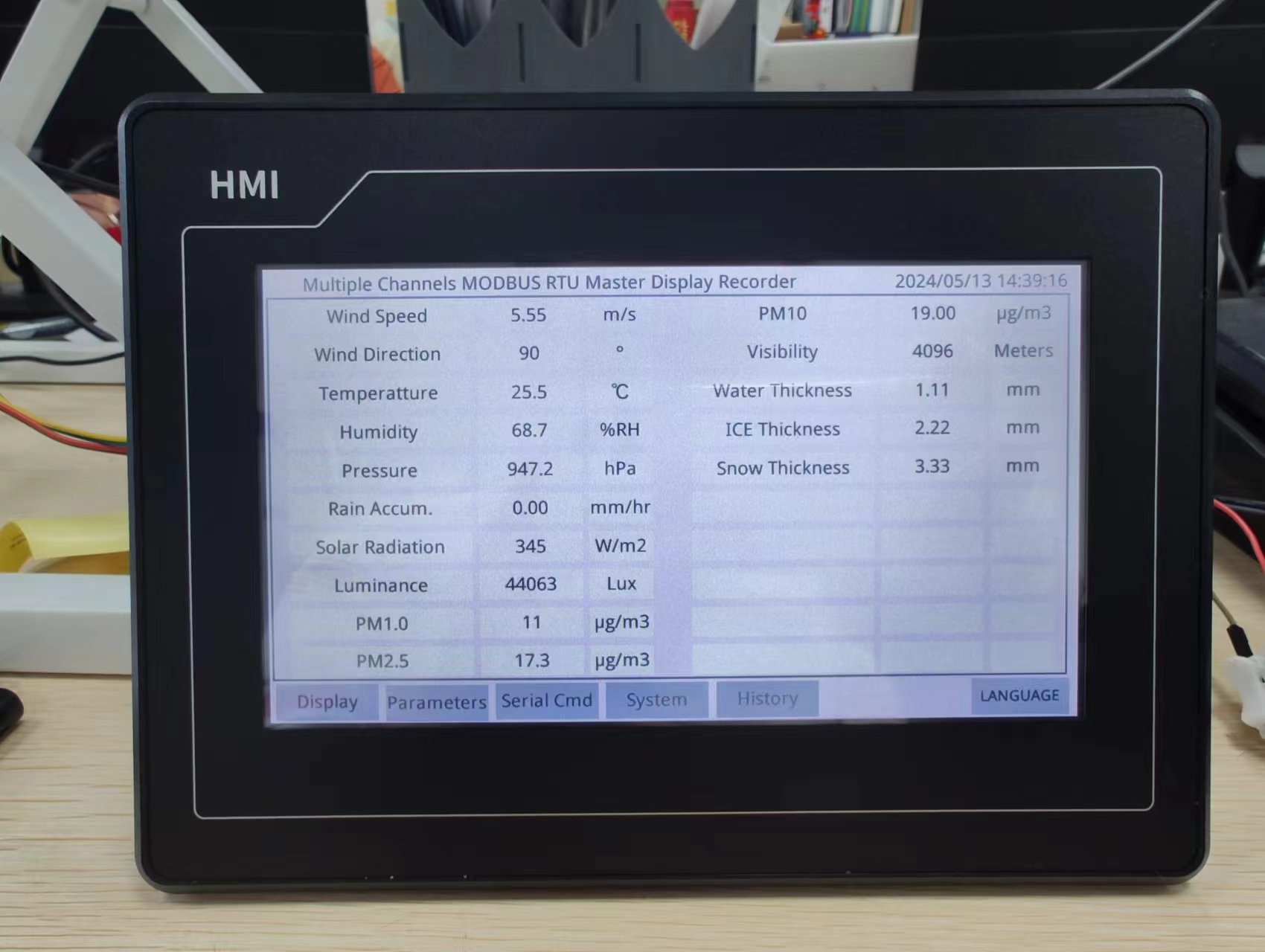

HY-MME is a data logger that can sample data from various MODBUS sensors. It works as MODBUS RTU Master, continuously and repeatedly send MODBUS inquiry commands over RS485 to fetch, decode,display, record data from sensor. Generally, it is similar to Software MODBUS POLL.
Details:
Contact us at info@hongyuv.com
HY-MME is a data logger that can sample data from various MODBUS sensors. It works as MODBUS RTU Master, continuously and repeatedly send MODBUS inquiry commands over RS485 to fetch, decode,display, record data from sensor.. Generally, it is similar to Software MODBUS POLL.
Specification
------------------------------------------------------
Support data type:
16 bits signed int
16 bits unsigned int
32 bits unsigned int
32 bits CDAB single precision float
Serial commands supported:
Maximum 8 commands
Each command with individual timeout
Name,unit,coefficient,slave ID, starting register, resolution of each parameter can be set by keyboard.
------------------------------------------------------
Screen: 7 inch Resistive touch screen
RTC function:Yes
Resolution: 1024*600
Open window dimention: 192mm*138mm
------------------------------------------------------
Serial Output: RS485
Baud rate: 1200 ~ 115200 bps
------------------------------------------------------
Power Supply: 5-30 VDC 0.6~2.4 Watt
Dimensions: 210mm*150mm*24mm
------------------------------------------------------
