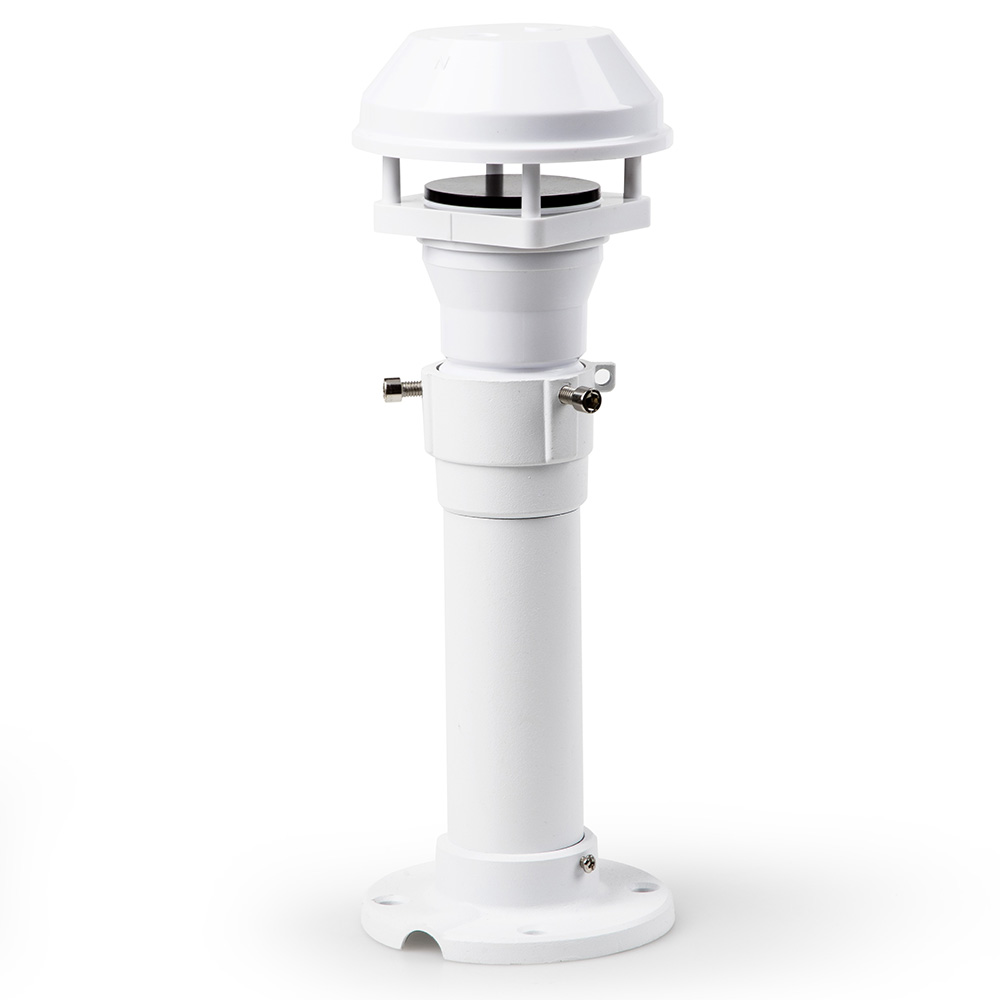

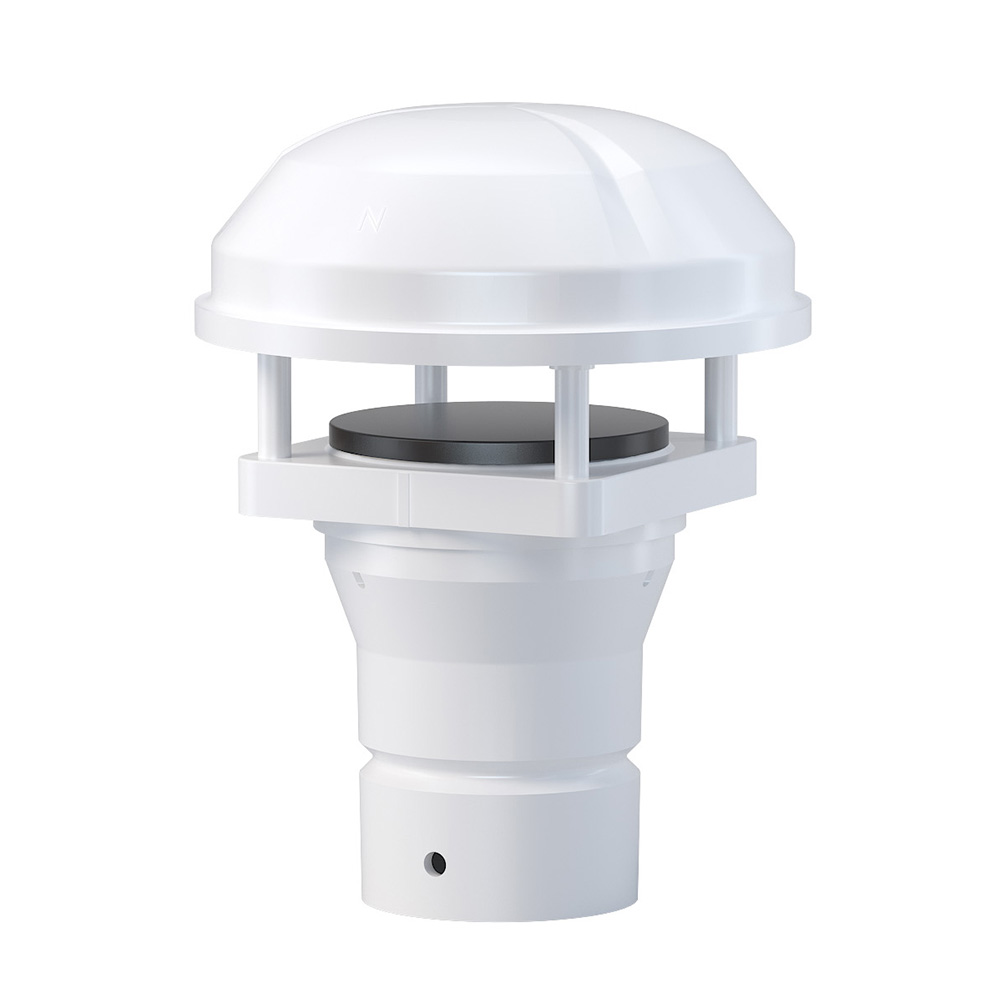

HY-SA3E wind speed and direction meter is an instrument which uses flight time difference of ultrasonic wave in the air to measure wind speed and direction simultaneously. HY-SA3E adopts low power consumption chip. It is pretty suitable for solar or battery power supply environment. The shell is made of aluminum alloy with anodized and corrosion-resistant surface that makes it compact, robust and delicate.
Brief Introduction
HY-SA3E wind speed and direction meter is an instrument which uses flight time difference of ultrasonic wave in the air to measure wind speed and direction simultaneously. HY-SA3E adopts low power consumption and is especially suitable for solar or battery power supply environment. The shell is made of aluminum alloy with anodized and corrosion-resistant surface that makes it compact, robust and delicate.
Typical Application
- Weather station
- Meteorology
- Oil drilling platform
- Marine application
- Unmanned drone(UAV)
- Wind power plant
Key Features
- No moving or wearing parts
- Maintenance free
- Robust rugged and reliable
- High precision and accuracy
Technical Parameters
| Parameters | Measure Range | Accuracy | Resolution |
| Wind Speed | 0---70m/s | ±3% | 0.01m/s |
| Wind Direction | 0-359° | ±3° | 1° |
| Threshold of wind speed | 0.01m/s | ||
| Baudrate | 4800---19200bps | ||
| Power supply | 5-30VDC, 0.3W | ||
| Protection Class | IP65 | ||
| Operating Environment | -20℃ to +60℃; 0---100%RH | ||
| Output options | RS232,RS485,SDI-12 | ||
| Optional protocol | MODBUS-RTU,NEMA0183,Active output,SDI-12 | ||
| Dimension/Weight | Φ110×140mm, 0.18kg | ||
| Material of body | ASA | ||
| Warranty | 24 months; Mean Time Before Failure: 10 years | ||
