Brief Introduction

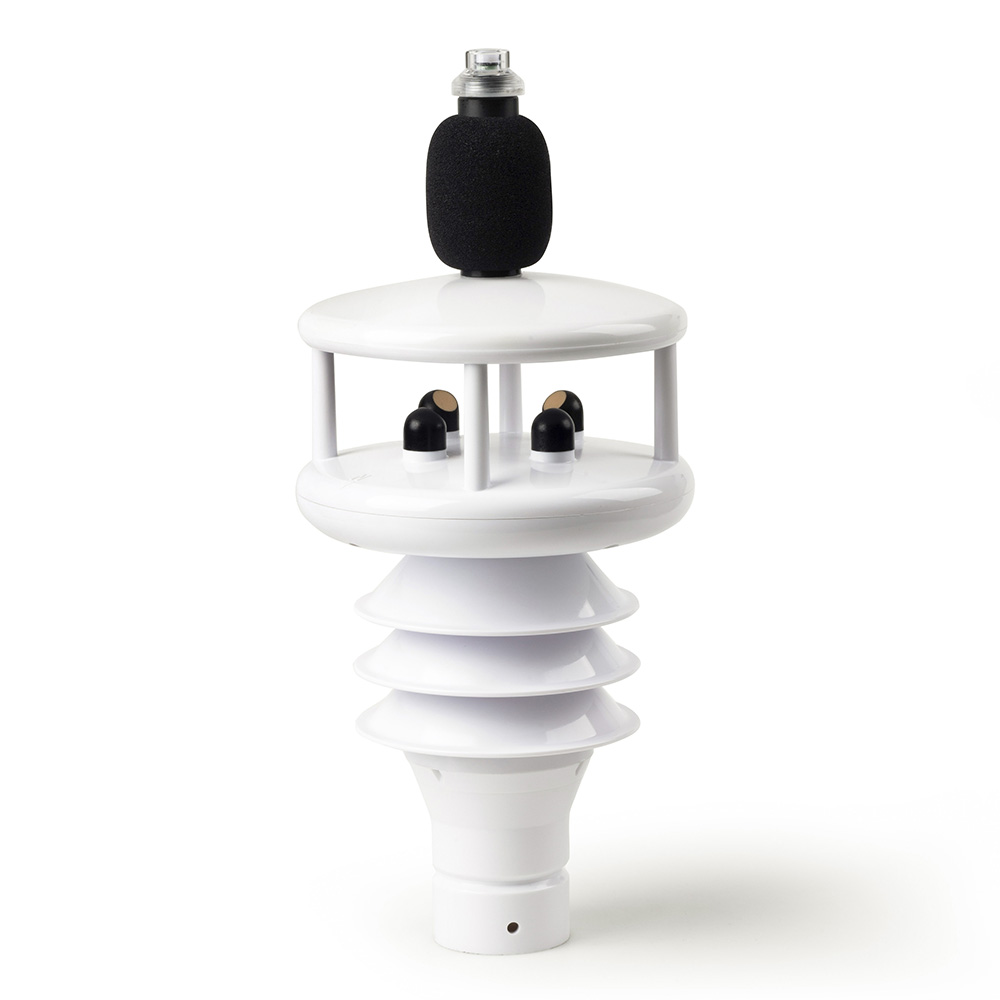

HY-WDS6E is a weather station integrated with multiple high accuracy sensors. Chengdu HongYuv technologies utilising our expertise as the Chinese leading weather station manufacturer, HY-WDS6E’s wind sensor is based on our ultrasonic technology, is of a robust, high strength construction designed to withstand installation and use with no fear of the damage commonly experienced with more fragile cups/vane weather station. Ideal for applications that demand economic weather sensing. Without the need for expensive on-site calibration or maintenance and with a corrosion free exterior, HY-WDS6E is maintenance free, quick and easy to install.
HY-WDS6E Compact weather station is a self-developed professional meteorological sensor for simultaneous measurement of multi-parameters: atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure and precipitation. Air temperature, humidity, and pressure measurements are measured by standard industrial MEMS sensor positioned in radiation protection shield. It is characterized by high accuracy and fast response time.
Measurement of wind speed and direction is working based on principle of ultrasonic travel time difference. Precipitation is detected by 24G radar, which can rapidly detect precipitation and its intensity. GPS global positioning module and electronic compass are optional to be installed in reserved room, with these two module, you can obtain longitude and velocity accurately, thereby, true and apparent wind speed & direction can be calculated out.
Our weather stations are made in molded thermoplastic, also known as ASA, which has high outdoor weather ability. ASA is extremely resistant against UV radiation of sun, it is frost and heat resistant, standing all climatically conditions.The product is widely used in
the automotive industry as well as several other outdoor applications.
Features
- Robust design, easy to install, 24 hours continuous monitoring
- Without moving parts, whole system is free of maintenance
- MODBUS communication protocol, standard RS485/RS232 output
- Electronic compass, GPS or BeiDou global positioning module can be added
- With internal heating device ensures normal operation in cold weather
- Radar precipitation can accurately measure amount of precipitation and reflect beginning and ending of raining
Technical specification
| Model | HY-WDS6E | |||
| Signal Output | RS232、RS485、SDI-12 | |||
| Power Supply | DC：7-24V | |||
| Data Output | 1per second | |||
| Power Consumption | 125mA@12V(heating off) | |||
| Material of Body | ASA | |||
| Communication Protocol | Modbus、NMEA-0183、SDI-12 | |||
| Dimension | Ø144 * 248 mm | |||
| Operating Temperature | -40℃ to +70℃ | |||
| Operating Humidity | 0 --- 100% | |||
| Principle | Range | Accuracy | Resolution | |
| Wind Speed | Ultrasonic | 0---60m/s | ±2% | 0.01m/s |
| Wind Direction | Ultrasonic | 0-359° | <3° | 1° |
| Air Temperature | MEMS sensor | -40℃ to +80℃ | ±0.5℃ | 0.1℃ |
| Air Humidity | MEMS sensor | 0---100% | ±2％ | 0.1％ |
| Air Pressure | MEMS sensor | 150---1100hPa | ±1hPa | 0.1hPa |
| Precipitation(Type:Rain/Hail/Snow; Intensity:Rain) | Radar | 0---100mm/hr | ±10% | 0.01mm |
| Luminance | Silicon | 0---200000lux | ±5% | 1Lux |
| Solar Radiation | Silicon | 0---2000 W/㎡ | ±5% | 1 W/㎡ |
| UV | Silicon | 0---2000 W/㎡ | ±5% | 1 W/㎡ |
| UV Index | Silicon | 0---15 | ±5% | 1 |
| PM1.0/PM2.5/PM10 | Laser scattering | 0---500ug/m³ | ±10% | 1ug/m³ |
| Sea level | MEMS sensor | -50---9000m | ±5％ | 1m |
