Introduction:
HY-DAM is an universal data acquisition module developped by Hongyuv Technology. Not only can it display real-time data, history graph, store data, but also upload data to your server via TCP connection or HTTP request. It also support uploading data to Weather Underground platform, HongYuv IoT platform.
All data received by serial port(UART, RS485, RS232, TTL) can be configured to uploaded to your server.
It’s working based on embedded real-time operating system, which is stable, free of system crash.
It can support all kinds of HongYuv protocols: unsolicited(active) ASCII string output, NMEA0183, MODBUS-RTU.
We also provides IoT integration service to clients, and program HY-DAM data acquisition module to sample data from UV sensor, solar radiation sensor, PAR sensor, soil humidity / temperature, air quality, noise, water quality, water level, visibility, road state sensor, rain sensor etc.
Below introduction is one of HY-DAM designed for HongYuv weather stations.
Display interface for different sensors will be different.
Features:
Wind Sector indication
Real-time wind speed direction graph
l Wind and Temperature Alarm
Configurable wind, temp,pressure, rain unit
TCP connection supported
Report data to Weather Underground free IoT platform
Firmware can be upgraded via WIFI or RJ45 Ethernet
SD TF store over 4000 days’ data Support HongYuv IoT platform
Can upload data to your own server or IoT platform

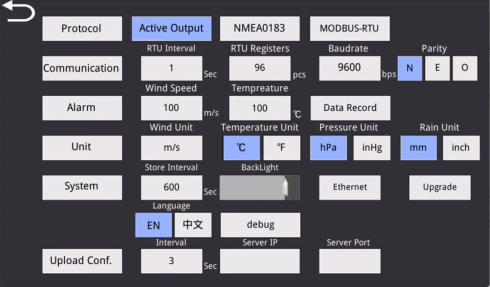

System setting page:
HY-DAM data acquisition module has WiFi or Ethernet interface for option.

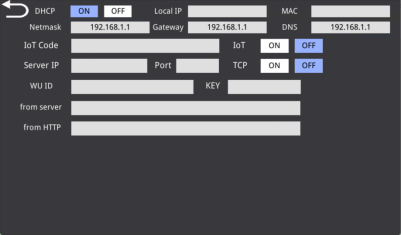

Ethernet setting page for RJ45 Ethernet interface:

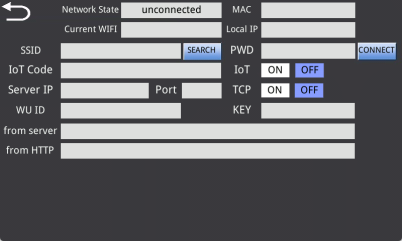

WIFI setting page for WiFi interface:

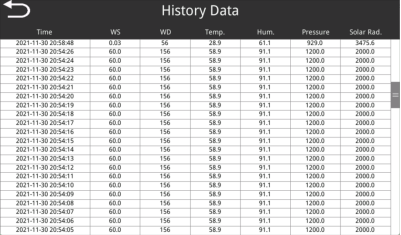

Data record page:
Firmware can be upgraded via hot spot shared by phone or router within seconds.
Upgrade only consumes about 3MB each time.
You don't need to send back HY-DAM data acquisition module iff you have projects that need our customization service, we can upgrade it remotely by WiFi or Ethernet.
Specification:
| Screen | 7 inch TFT Capacitive touch screen |
| CPU | 800Mhz |
| RTC function | Yes |
| Dimension | WIFI interface :190mm×110mm×18mm,Ethernet interface: 210mm×150mm×35mm,Outlook of WIFI DAM and Ethernet DAM is little different. |
| Display Zone | 155mm×87mm |
| Interface | TTL or RS485 or RS232 |
| Internet interface | Optional WIFI: 2.4GHz-2.48GHz supported,Optional RJ45 Ethernet |
| TF card | SD card storage, 32G SD card can store 4000 days' data |
| Operational Temp | -20℃---+70℃ |
| Storage Temp | -30℃---+80℃ |
| Optional protocol | MODBUS-RTU,NEMA0183,Active ASCII string output.Other protocol can be customized |
| Reliability | It has passed industrial standard high and low temperature, ESD, group pulse and radiation tests |
| Power consumption | Backlight off:120mA 20%:150mA 100%: 240mA @12VDC |
What you can do with HY-DISPLAY?

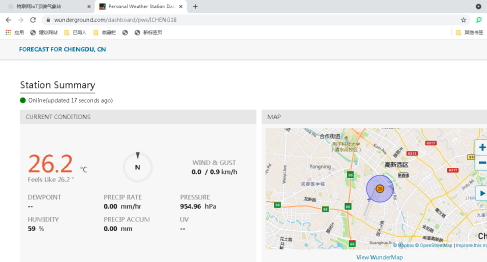

1. Upload data to Wunderground.

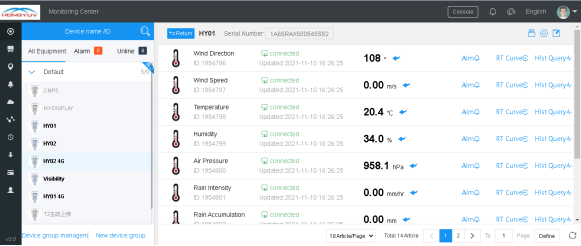

2. Upload data to HongYuv IoT platform, which can be accessed by WEB or APP.
3. Upload data to your own server.
You can start exploring endless possibility from purchasing one HY-DISPLAY and our sensors.
