Brief Introduction

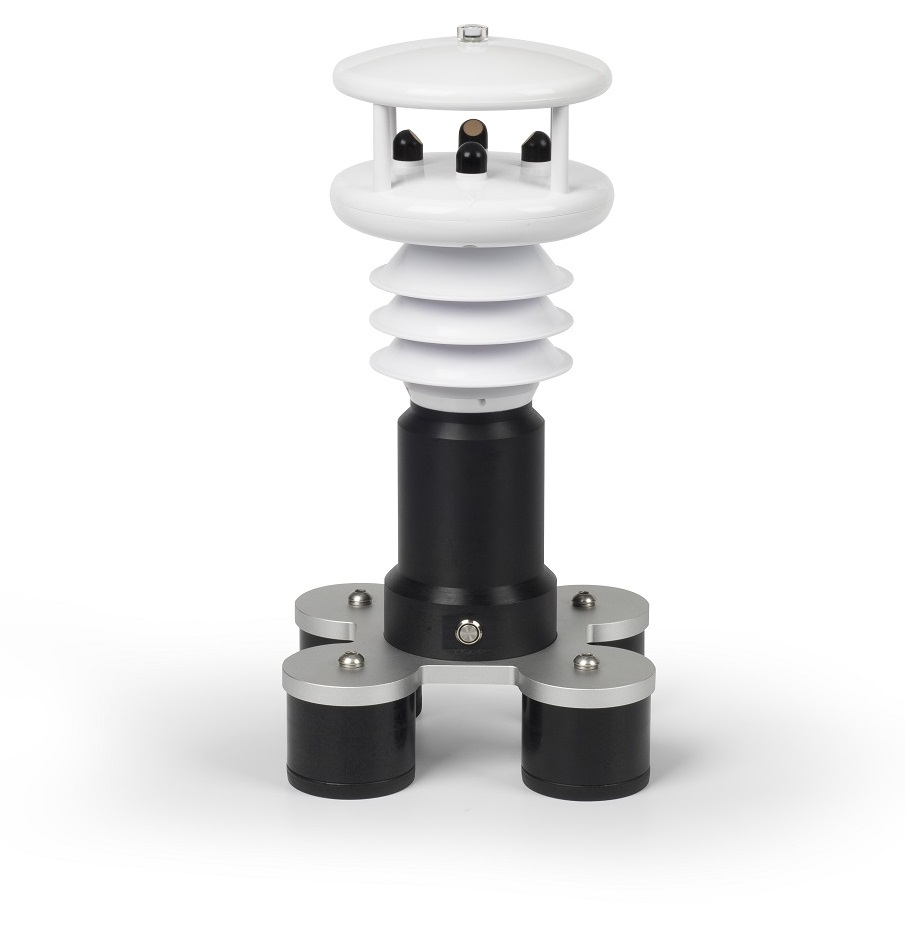

HY-WDS65E vehicle carried automatic weather station is professional meteorological station manufactured by Hongyuv, which can simultaneously measure air temperature, air humidity, wind speed, wind direction, air pressure and precipitation,and the real-time display of six data elements,Bottom of HY-WDS65 is two strong magnet wrapped by rubber,convenient for installation on vehicle by attractive force of magnet.
It has built-in rechargeable lithium batter and Bluetooth wireless data transmission module to send real-time data collected by weather station to APP on phone or laptop,and displayed in software.Total weight is only 1.8kg, easy for carrying and operation.
Features
Built-in rechargeable lithium battery last for over 10 hours
Built-in three axis electric compass, can calculate intersection angle with geophysical north direction
Sensor comes with heating device to ensure normal work in cold weather
No moving parts, free of maintenance
Technical Parameters
<| Model | HY-WDS6E | |||
| Signal Output | Bluetooth | |||
| Power Supply | 12VDC Built-in rechargeable lithium battery last for4 hours | |||
| Dimension | 150*110*320mm | |||
| Power Consumption | 185mA@12V(heating off) | |||
| Operating Temperature | -40℃ to +70℃ | |||
| Operating Humidity | 0 - 100% | |||
| Principle | Range | Accuracy | Resolution | |
| Wind Speed | Ultrasonic | 0---60m/s | ±2% | 0.01m/s |
| Wind Direction | Ultrasonic | 0-359° | <3° | 1° |
| Air Temperature | MEMS sensor | -40℃ to +80℃ | ±0.5℃ | 0.1℃ |
| Air Humidity | MEMS sensor | 0---100% | ±2％ | 0.1％ |
| Air Pressure | MEMS sensor | 150---1100hPa | ±1hPa | 0.1hPa |
| Precipitation (Rain) | Radar | 0---100mm/hr | ±10% | 0.01mm |
| With compass and GPS integrated, output real-time relative wind speed, direction as well as true wind speed and direction, compass heading, GPS speed. | ||||
