Introduction

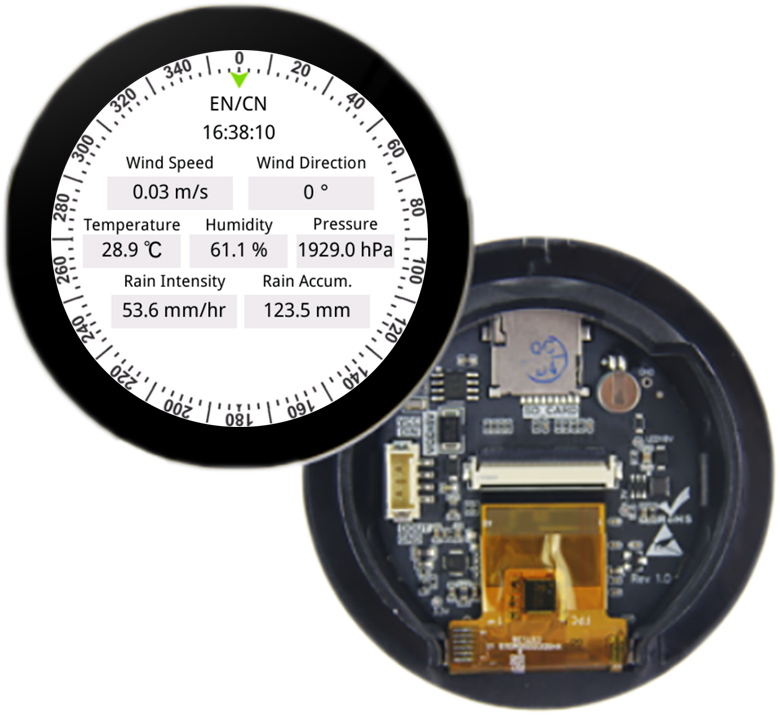

HY-DISPLAY-21 is a versatile console comes with multiple function developed by Hongyuv Technology.
It can display and record real-time data. All data received by serial port TTL interface, will be automatically analyzed, displayed on screen and recorded in TF card.
It’s working based on embedded real-time operating system, which is stable, free of system crash. It can support HongYuv unsolicited(active) output in ASCII stream format, NMEA0183, MODBUS-RTU protocol.
We can also make it suit to your own protocol based on your requirement customization. Multiple language can be customized.
Features
Intuitive wind speed direction indication
Multilingual function can be customized
Save data record in excel file in TF card for future analysis
Can be easily mounted onto your own panel.
Technical Specification
| Screen | 2.1 inch TFT Capacitive touchable screen |
| Resolution | 480*480 |
| RTC function Internal clocking | Yes |
| Dimension | Display Zone: Φ53 mm Outer dimension:Φ78mm*16mm |
| Interface | TTL |
| TF card | Supported, 32GB TF card can store 10 years’ data |
| Operational Temp | -20℃---+70℃ |
| Storage Temp | -30℃--- +80℃ |
| Optional protocol | MODBUS-RTU,NEMA0183,Active output.Other protocol can be customized |
| Reliability | It has passed industrial standard high and low temperature, ESD, group pulse and radiation tests |
| Operating Voltage | 5VDC |
| Power consumption | Backlight off:90mA@5VDC,10%:100mA@5VDC,100%: 180mA@5VDC |
