Brief Introduction

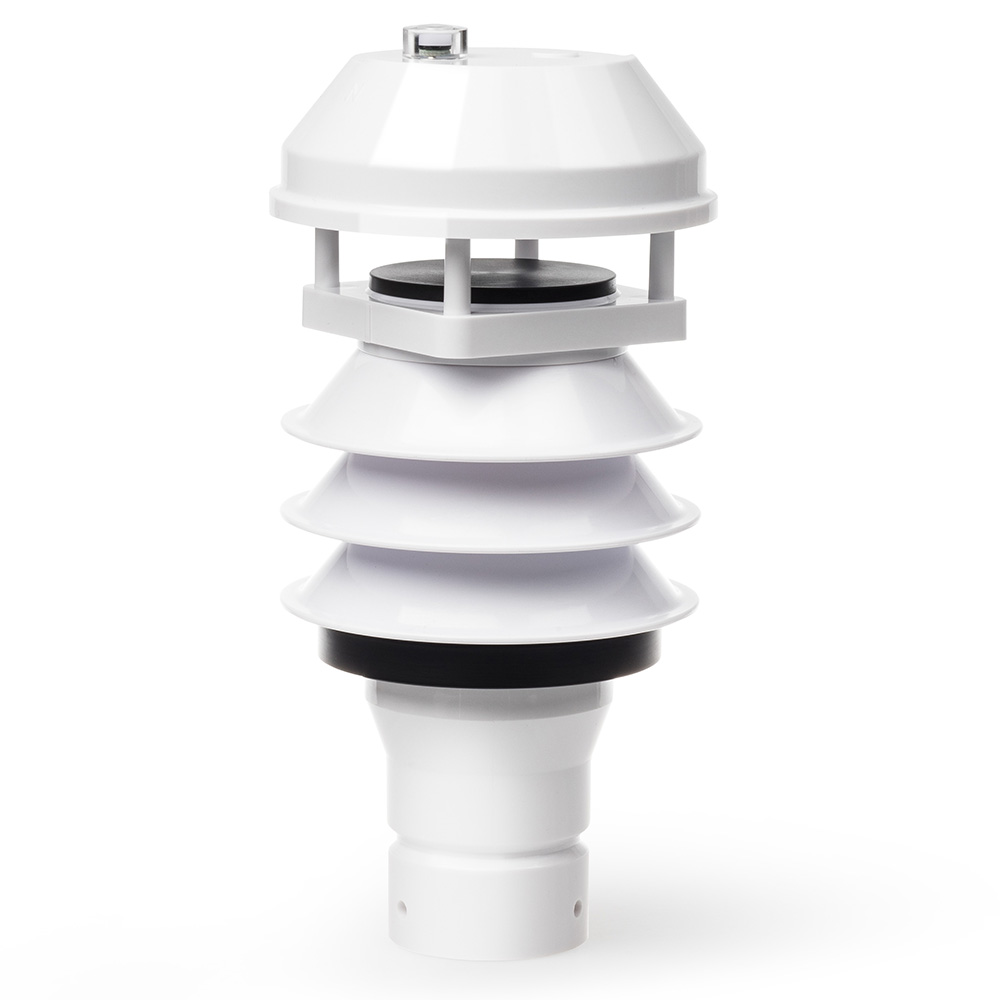

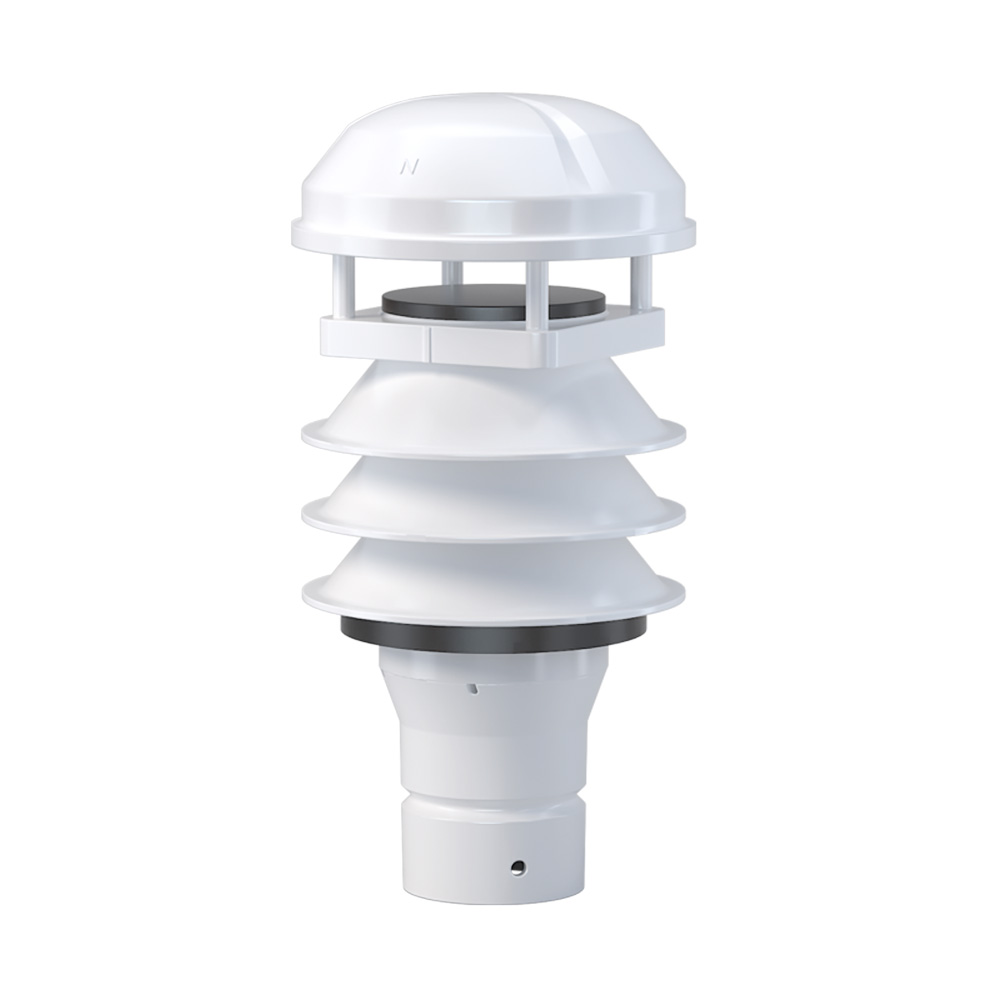

HY-SA6E is a weather station integrated with multiple high accuracy sensors. Chengdu HongYuv technology utilising our expertise as the Chinese leading weather station manufacturer, Wind measurement of HY-SA6E is based on our ultrasonic technology, is of a robust, high strength construction designed to withstand installation and use with no fear of the damage commonly experienced with more fragile cups/vane weather station. Ideal for applications that demand economic weather sensing. Without the need for expensive on-site calibration or maintenance and with a corrosion free exterior, HY-SA6E is maintenance free, quick and easy to install.
Our weather station are made in molded thermoplastic, also known as ASA, which has high outdoor weather ability. ASA is extremely resistant against UV radiation of sun, it is frost and heat resistant, standing all climatically conditions.The product is widely used in the automotive industry as well as several other outdoor applications.
Features
Robust design, easy to install, 24 hours continuous monitoring
Without moving parts, whole system is free of maintenance
MODBUS communication protocol, standard RS485/RS232 output
Radar precipitation can accurately measure amount of precipitation and reflect beginning and ending of raining.
Specifications
| Model | HY-SA6E | |||
| Signal Output | RS232、RS485、SDI-12 | |||
| Power Supply | 7-24VDC | |||
| Data Output | 1 per second | |||
| Power Consumption | 125mA@12V(heating off) | |||
| Material of Body | ASA | |||
| Communication Protocol | Modbus、NMEA-0183、SDI-12 | |||
| Dimension | Ø144 * 248 mm | |||
| Operating Temperature | -40℃ to +70℃ | |||
| Operating Humidity | 0 to 100% | |||
| Principle | Range | Accuracy | Resolution | |
| Wind Speed | Ultrasonic | 0-70m/s | ±3% | 0.1m/s |
| Wind Direction | Ultrasonic | 0-359° | <3° | 1° |
| Air Temperature | MEMS sensor | -40℃ to +80℃ | ±0.5℃ | 0.1℃ |
| Air Humidity | MEMS sensor | 0---100% | ±2％ | 0.1% |
| Air Pressure | MEMS sensor | 150---1100hPa | ±1hPa | 0.1hPa |
| Precipitation(Type:Rain/Hail/Snow; Intensity:Rain) | Radar | 0---200mm/hr | ±10% | 0.01mm |
| Luminance | Silicon | 0---200000lux | ±5% | 1Lux |
| Solar Radiation | Silicon | 0---2000W/㎡ | ±5% | 1W/㎡ |
| UV Radiation | Silicon | 0-2000W/㎡ | ±5% | 1W/㎡ |
| PM1.0/PM2.5/PM10 | Laser scattering | 0-500ug/m³ | ±10% | 1 ug/m³ |
| Sea Level | MEMS sensor | -50---9000m | ±5％ | 1m |
| Compass Heading | 0-359° | <3° | 1° | |
Note: All parameters needed should be decided when you place the order. Final price depend on configuration.
