Brief Introduction
HY-SA2E wind speed and direction meter is an instrument which uses flight time difference of ultrasonic wave in the air to measure wind speed and direction simultaneously. HY-SA2E adopts low power consumption chip that can be as low as 0.01W. It is especially suitable for solar or battery power supply environment. The shell is made of aluminum alloy with anodized and corrosion-resistant surface that makes it compact, robust and delicate.

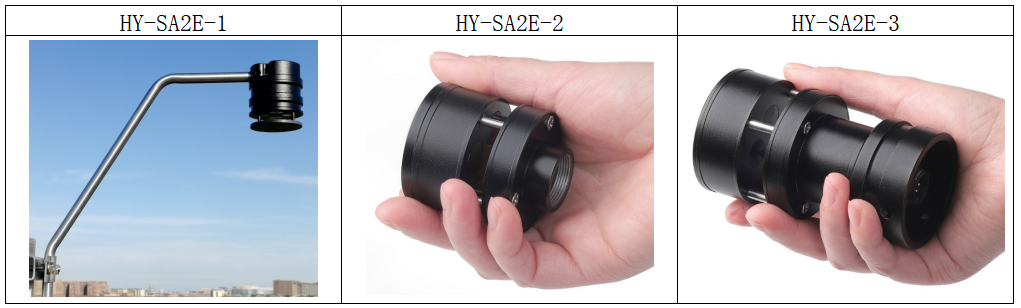

We have several structures and materials for your option.
Typical Application
- Weather station
- Meteorology
- Oil drilling platform
- Marine application
- Unmanned drone(UAV)
- Wind power plant
Features
- No moving or wearing parts
- Maintenance free
- Robust metal body
- Rugged and reliable
- High precision and accuracy
Technical Parameters
| Parameters | Measure Range | Accuracy | Resolution |
| Wind Speed | 0-60m/s | ±3% | 0.1m/s |
| Wind Direction | 0-359° | ±3° | 1° |
| Threshold of wind speed | 0.1m/s | ||
| Baudrate | 4800---19200bps | ||
| Power supply | 7-30VDC 10mA@12VDC | ||
| Protection Class | IP65 | ||
| Operating Environment | -20℃ to +60℃; 0---100%RH | ||
| Storage Temp | -50℃ to +80℃ | ||
| Output options | RS232,RS485,SDI-12 | ||
| Optional protocol | MODBUS-RTU,NEMA0183,Active output,SDI-12 | ||
| Dimension/Weight | Φ50×58mm 0.28kg | ||
| Material of body | Aluminium alloy black color | ||
| Warranty | 24 months; Mean Time Before Failure: 10 years | ||
