Brief Introduction

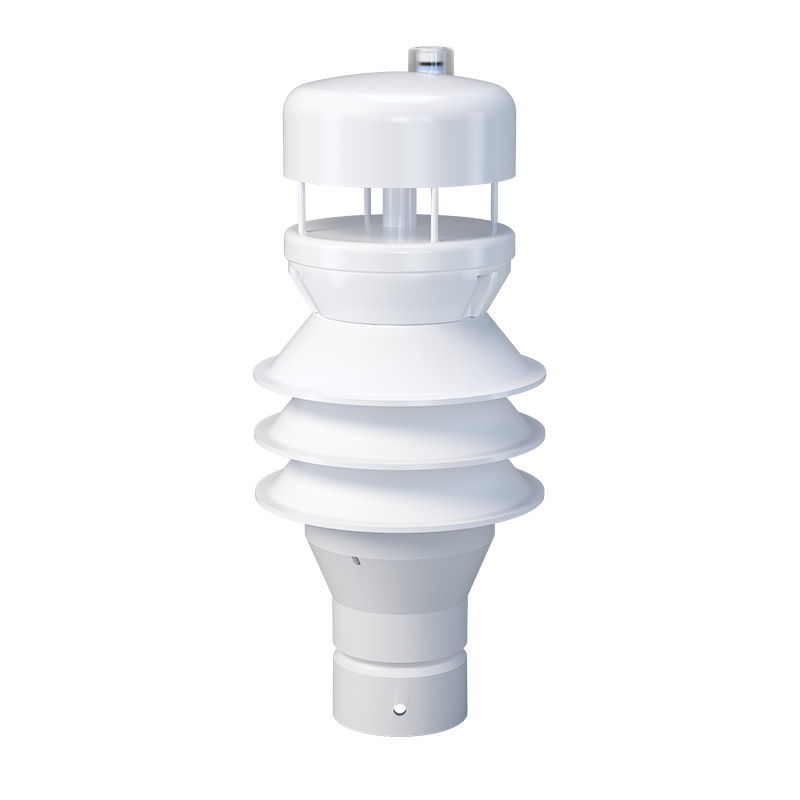

HY-WDC6E mini automatic weather station self-developed by HongYuv can simultaneously monitor multiple optional meteorological parameters: wind speed, wind direction, temperature, humidity, pressure, precipitation, solar radiation, UV radiation, luminance and PM1.0/2.5/10.
Measurement of precipitation adopts advanced small 24GHz Doppler radar，The speed rate of drops is registered with a 24 GHz radar system. By comparison between the speed rate and the size of drops, the quantity of rain or its intensity will be registered. The rain/precipitation type (rain/snow/snow-covered rain/freezing rain/hail) is determined thanks to the speed rate of the rain.
Thanks to the adoption of new technology and design, the structure is more compact and robust. No need to conduct maintenance or calibration after installation.It’s very suitable to be integrated into Agrometeorological System.
Our weather stations are made in molded thermoplastic, also known as ASA, which has high outdoor weather ability. ASA is extremely resistant against UV radiation of sun, it is frost and heat resistant, standing all climatically conditions.The product is widely used in
the automotive industry as well as several other outdoor applications.
Typical Application
Weather station for household
Meteorological observation for farmland
Wind speed & direction monitoring for tower crane
Smart city distributed weather station
Technical Specification
| Parameters | Measure range | Accuracy | Resolution |
| Wind Speed | 0---40m/s | ±5％ | 0.1m/s |
| Wind Direction | 0---359° | ±3 ° | 1° |
| Temperature | -40℃ to +80℃ | ±0.5℃ | 0.1℃ |
| Humidity | 0---100% | ±5％ | 1% |
| Air Pressure | 150---1100hPa | ±1hPa | 0.1hPa |
| Precipitation | 0---100mm/hr | ±10％ | 0.01mm |
| Solar Radiation | 0---2000W/㎡ | ±5％ | 0.1W/㎡ |
| UV Radiation | 0---2000W/㎡ | ±5% | 0.1 W/㎡ |
| Luminance | 0---200000lux | ±5％ | 0.1lux |
| PM1.0/PM2.5/PM10(dust) | 0-500μg/m³ | ±10％ | 1μg/m³ |
| Digital Output | RS485 or RS232 or SDI-12 | ||
| Baud Rate | 4800---19200 | ||
| Communication Protocol | ModBus-RTU,NMEA0183,SDI-12 | ||
| Output Frequency | 1Hz | ||
| Protection Grade | IP65 | ||
| Operating Temperature | -40℃ to +60℃ | ||
| Working Humidity | 0---100% | ||
| Power Supply | VDC:7-24V | ||
| Material | ASA engineering plastic | ||
| Dimension/Weight | Φ84×210mm 0.33kg | ||
